Push down the
Light Shield
3. Push down the Light
Shield. Make sure that two
fastenings of the Light Shield
are attached to protruding
parts at the bottoms of Guide
Arms tightly. If the Light
Shield and Guide Arms are
jointed successfully, they can
be moved together by sliding
Guide Arms.
Positioning Industrial X-ray Films
NDT-2000's Feed Tray can hold only one piece of X-ray lm at a time. This
section shows you how to position a single-sheet of X-ray lm into the Feed Tray
with the aim of the Light Shield.

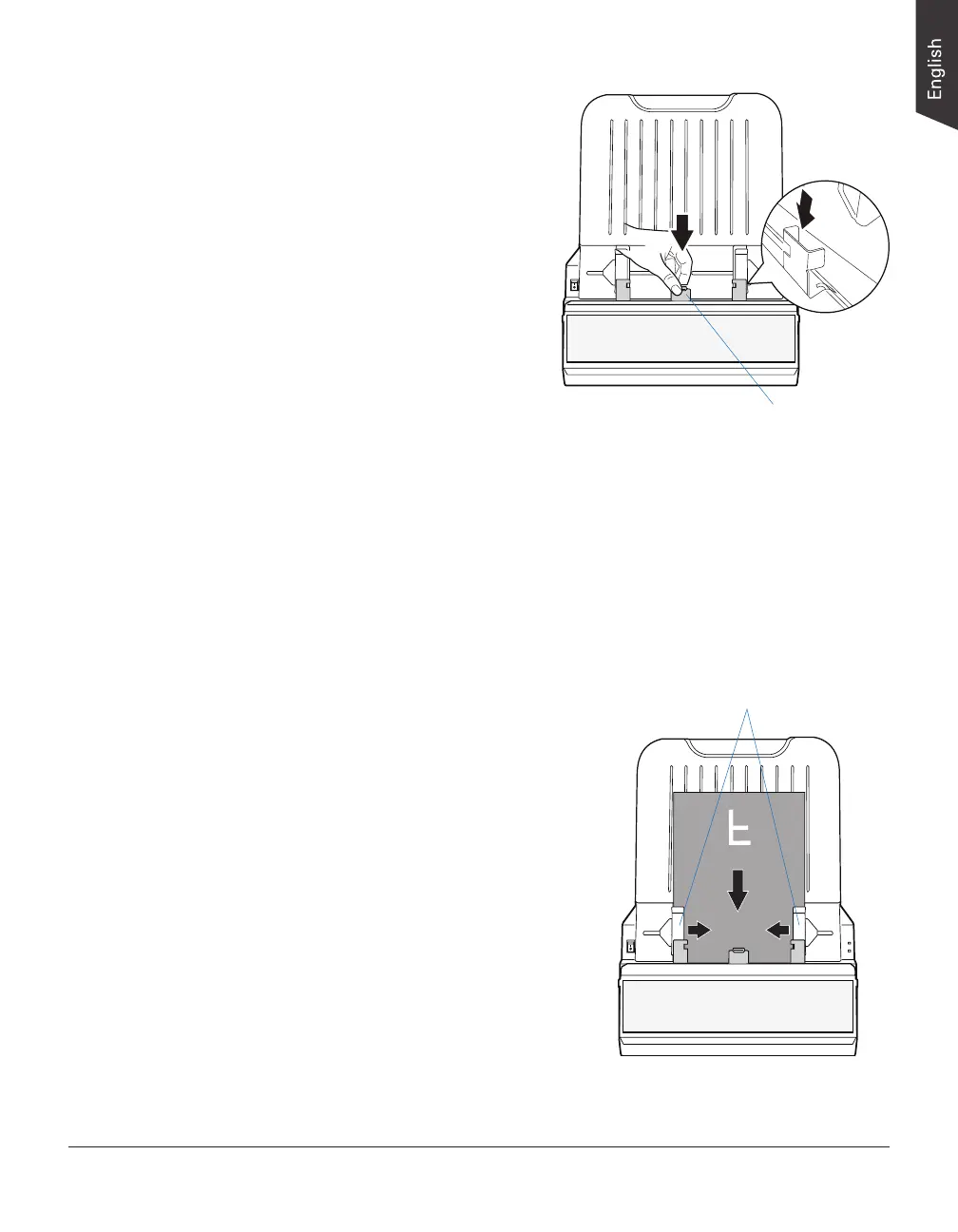

1. Attach the Light Shield into Guide
Arms before using it. Refer to the
previous sections “Attaching the Light
Shield into Guide Arms” for the detail.
2. Load and insert the lm into the Feed
Tray, with the side to be scanned
facing down and with the top of the
lm directing downwardly.
Push the lm into the tray until the
edge of it touches the bottom edge of
the Feed Tray.
3. If the width of the lm is less than
10.24 inches (26 cm), push the Light
Shield down; otherwise, pull the Light
Shield up.
Then, align the lm with the center
of the Feed Tray by sliding the two
Guide Arms with the attached Light
Shield toward the lm.
Guide Arms are xed
to the Light Shield

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
