Installing and Connecting the Auto Film Feeder (AFF)
You can use either the Auto Film Feeder (AFF) or the Feed Tray for one time with
your digitizer; therefore, before mounting the AFF onto your digitizer, make sure
that the Feed Tray has been removed out from the digitizer and the digitizer's
power is off.
Follow the steps below to install the AFF.

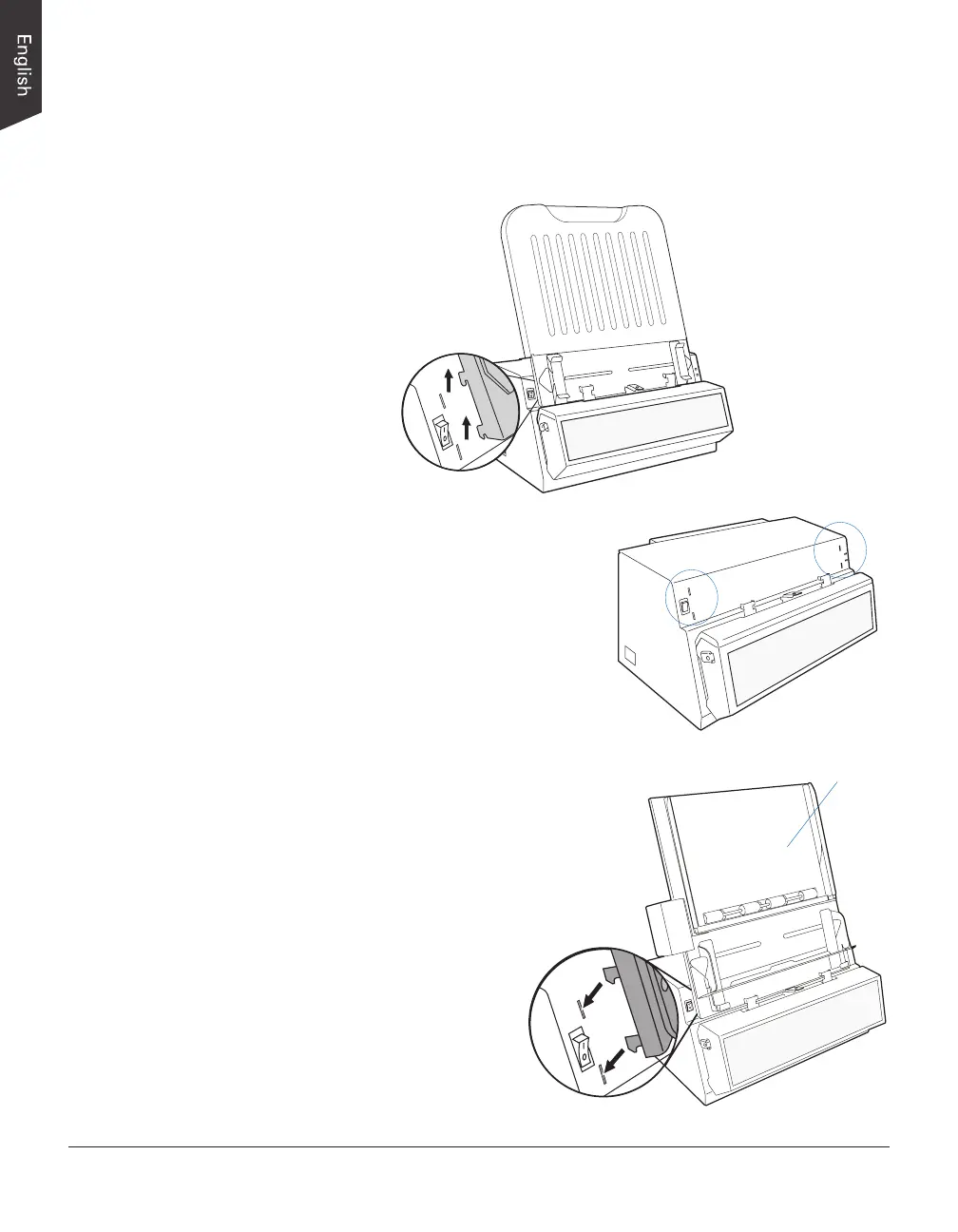

1. Look for two sets of the Feed Tray
Holes at both ends of the front-top of
the digitizer.
2. Insert and push down both sides of
the AFF into its compartment holes,
making sure the AFF snaps into place.
Lift up the Feed Tray
and remove it from the
digitizer before installing
the AFF onto the
digitizer.
AFF

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
