Microtek NDT-2000 User Manual

32 NDT-2000 User's Manual

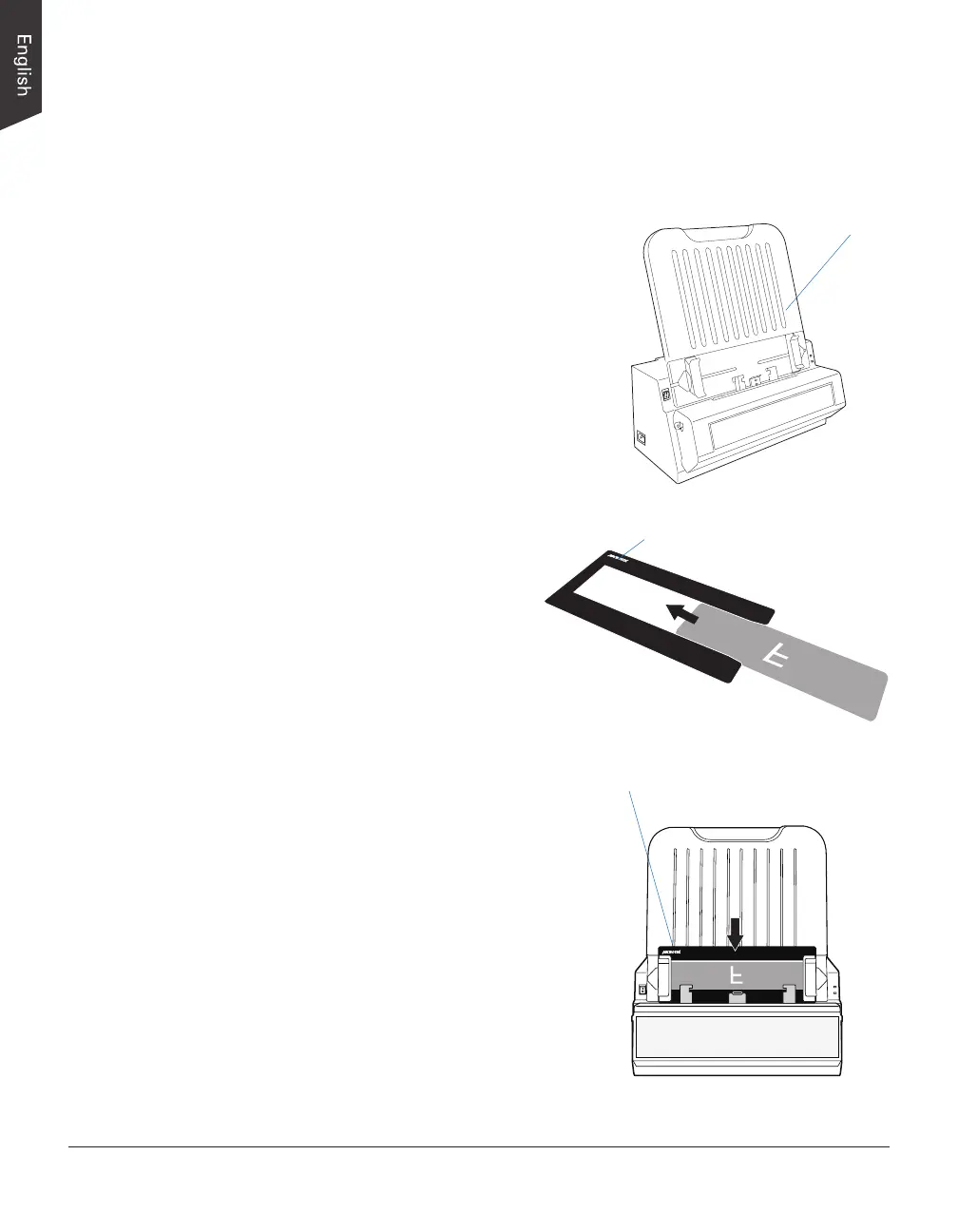

B. Using the 12” x 3 1/3” Film Holder
To scan 12” x 3 1/3” industrial lm, use the 12” x 3 1/3” Film Holder, which can
hold up to one piece of the 12” x 3 1/3” industrial X-ray lms at a time.
Feed Tray
1. Install the Feed Tray onto your digitizer
before using it. Refer to the previous
section “Installing the Feed Tray” for
the detail.
2. Load the lm face down inside the
holder. Slide the lm along the
slot of the holder until the lm
is fully loaded.
3. Load and insert the 12” x 3 1/3” Film
Holder with loaded lm into the Feed
Tray, with the side to be scanned
facing down and with the top of the
lm directing downwardly.
Push the holder into the tray until the
edge of it touches the bottom edge of
the Feed Tray.
4. Make sure that the Light Shield has
been pull up.
12.5" x 3 1/3" Film Holder
Microtek logo
Microtek logo
12.5" x 3 1/3" Film Holder

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
