Microtek NDT-2000 User Manual

58 NDT-2000 User's Manual
Using the Multi-channel Film Feeder (MFF)
The Multi-channel Film Feeder (MFF) allows to scan 2-3 sheets of 60 mm, 70
mm, 80 mm, 90 mm, 100 mm, 120 mm, 140 mm, 3.3 inch and 4.5 inch in
width lms at one time. This section will demonstrate how to select and set up
the lm-feeding channel and use the Glass Mask that correctly matches the size
of lm to be scanned together.

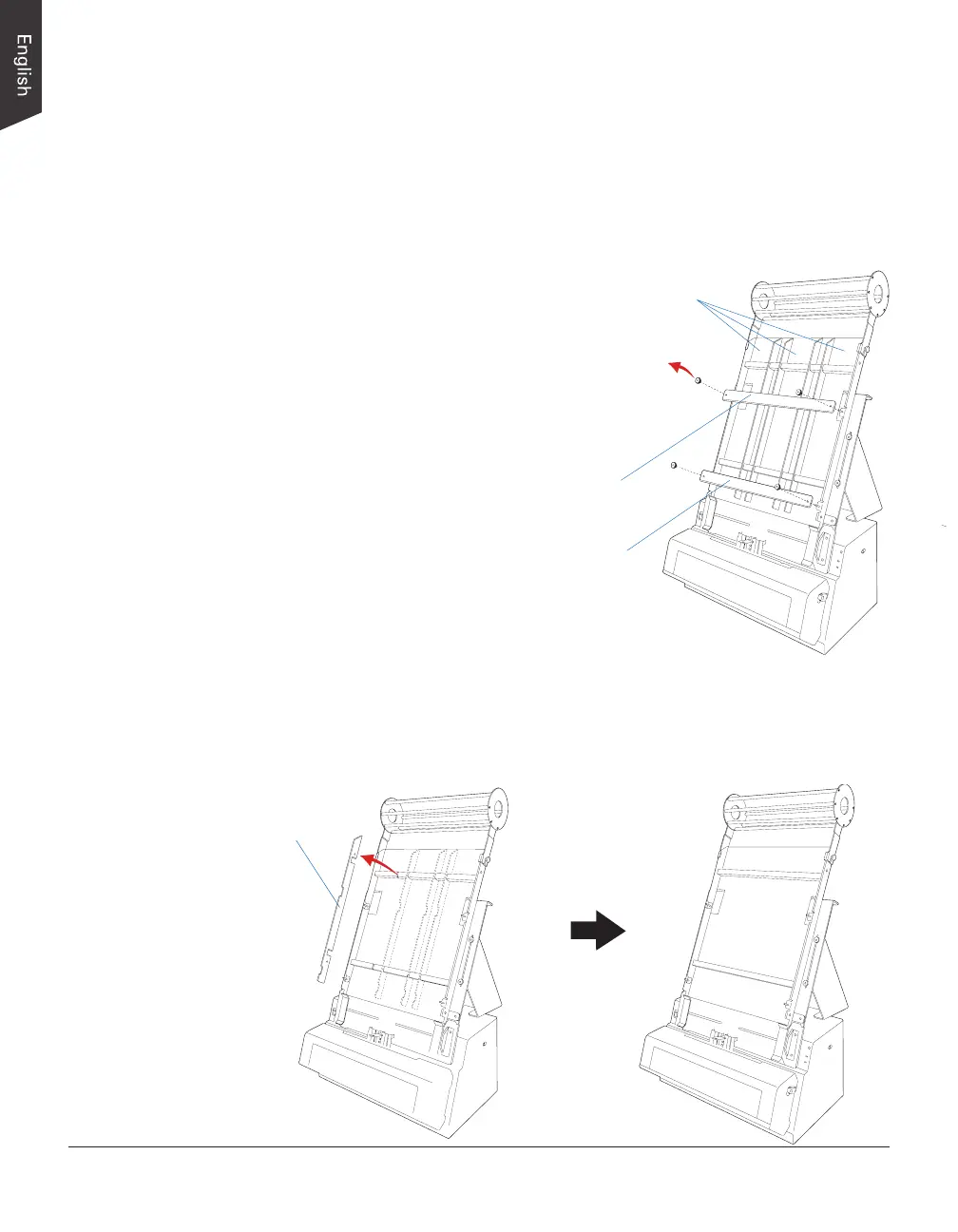

2. Take out Film-separation Bars.
Pinch both sides of a Film-separation Bar and then take it out from its
component part. Take turns to remove all Film-separation Bars attached with
the Multi-channel Film Tray. There should be four pieces of Film-separation
Bars in total.
Film-feeding
channels
Bottom Guardrail
Film-separation
Bar
1. Remove top and bottom Guardrails.
Locate two Quick-lock Nuts at two
sides of the top Guardrail of the Multi-
channel Film Tray. Spin to release
them from the set counterclockwise.
Then, remove the top Guardrail from
the tray. Follow the step above to
remove the bottom Guardrail from the
tray next.
Top Guardrail

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
