NDT-2000 User's Manual 59
70 100 100 70
70 100 100 70
3. Select and set up the lm-feeding channel matching the size of the lm to be
scanned.
a) Locate two Rectangular Prisms set at the top and the bottom of the
Multi-channel Film Tray. A Rectangular Prism contains four surfaces with
different measurement scales. Each surface is marked by numbers of
circles for differentiating and a measurement scale represents one size of
scanned lm supported.

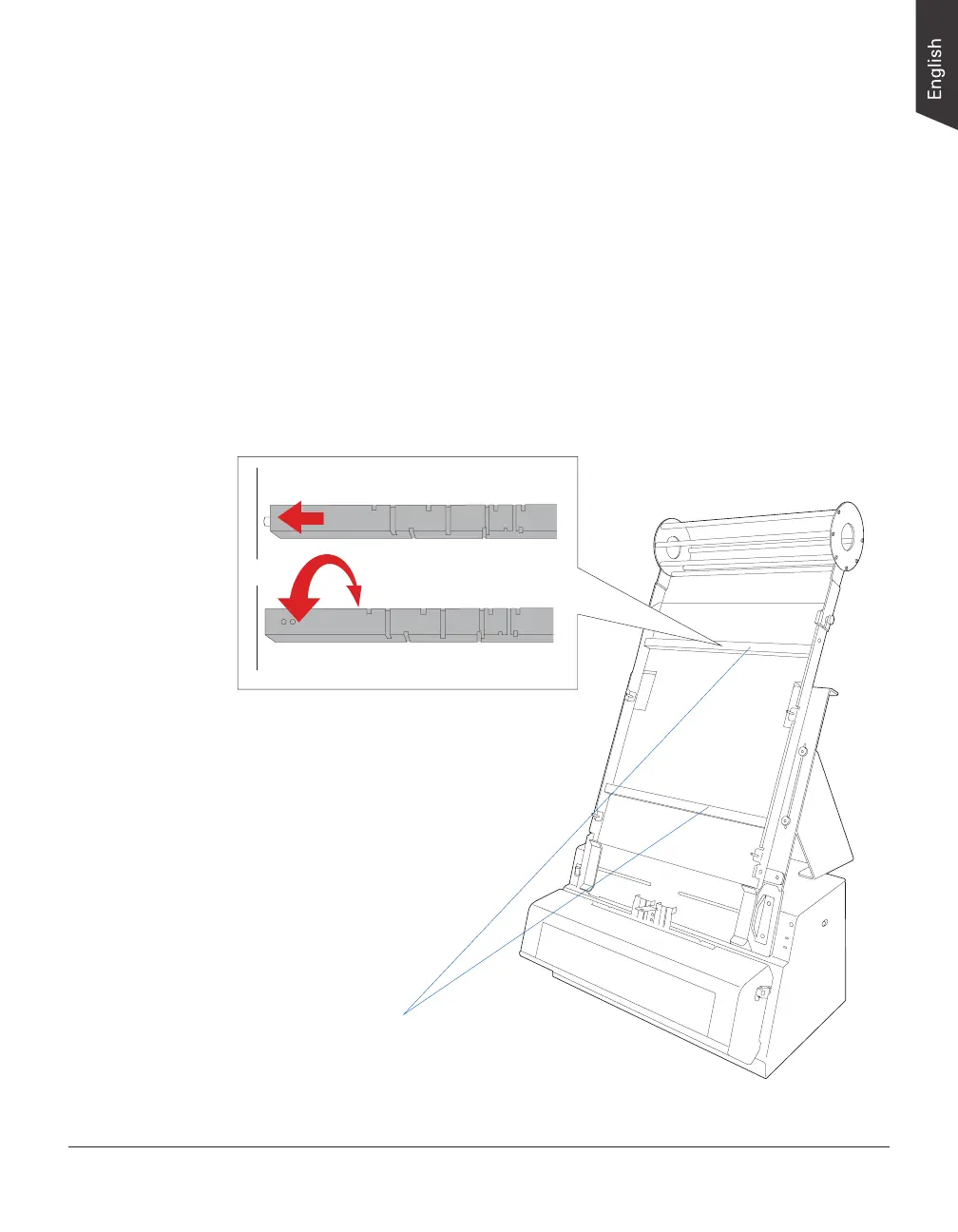

b) To rotate the Rectangular Prism for changing into another surface, grab
both sides of the top Rectangular Prism, push it toward the left of the
axis and then turn it over clockwise or counterclockwise.
When done, push the top Rectangular Prism toward the right of the axis
to ensure the top Rectangular Prism has been xed and cannot be turned
over. Repeat the step above to adjust the bottom Rectangular Prism,
ensuring both Rectangular Prisms possess the same surface.
Top and bottom
Rectangular Prisms
Push the Rectangular Prism toward
the left and turn it over clockwise
or counterclockwise to select the
preferred surface.
Four surfaces of a Rectangular Prism
contains 9 measurement scales in total:
Surface O : 60, 90
Surface OO: 70, 100
Surface OOO: 80, 120, 140
Surface OOOO: 3.3", 4.5"

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
