Microtek NDT-2000 User Manual

NDT-2000 User's Manual 39
Perforation

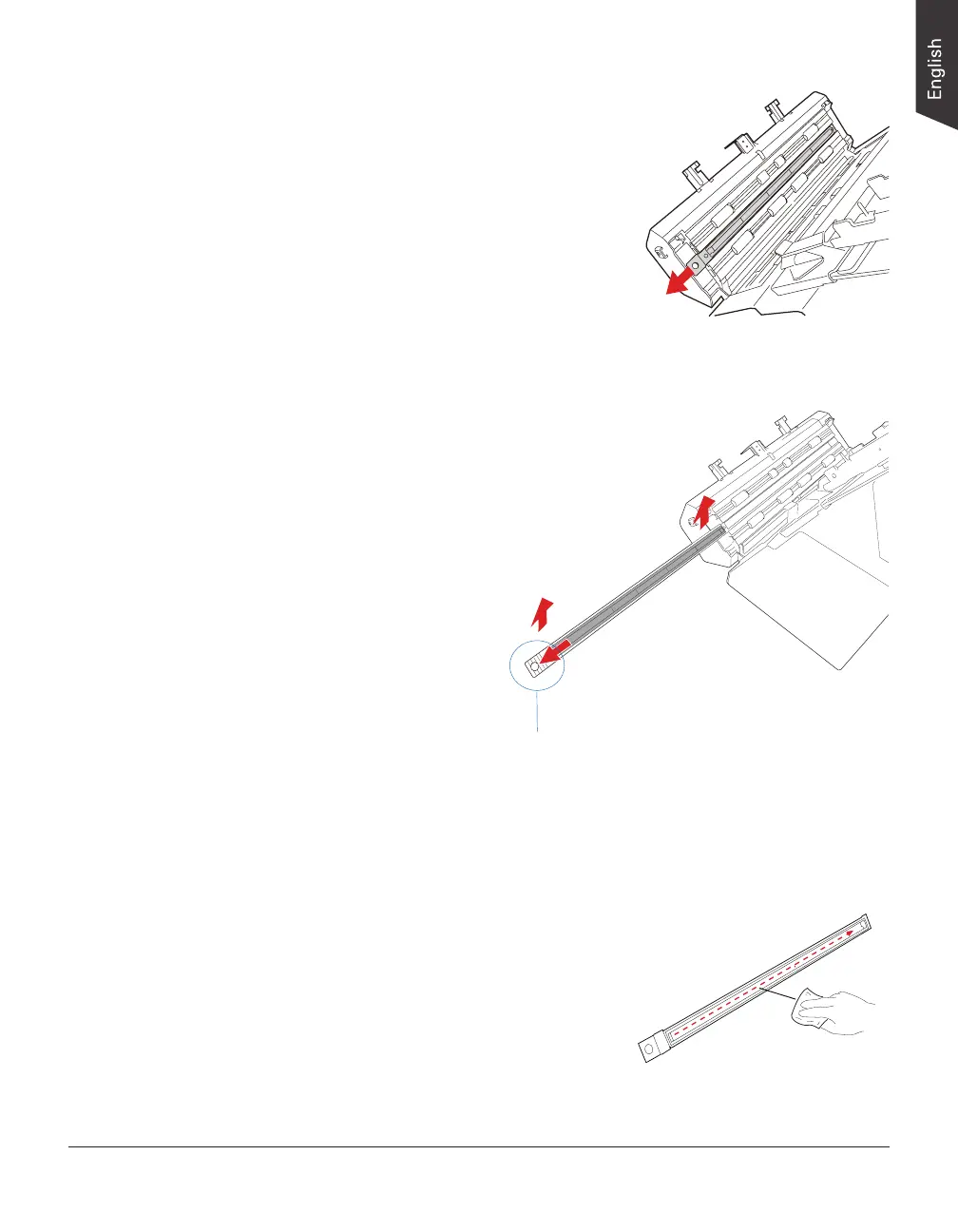

3. Locate the glass on the inner side of
the front cover rst. Follow the steps
below to pull out the glass from its
compartment part.
Find a perforation at the left of the
glass and use it to pull out the glass.
When pulling out the glass, make sure
the glass has been pull to reach the end
of the track; next, use another hand
to grab the right end of the glass and
then lift it up perpendicularly from its
compartment part
NOTE:
When you try to remove
the glass out from its
compartment part, if the
glass has not been pulled
out to the end of the track
and has not been lifted up
perpendicularly by both
hands, the glass may be
damaged and broken.
4. Use a soft, nonabrasive, and lint-free
cloth to gently wipe both sides of the
glass.

Microtek NDT-2000 Specifications

Scanning Specifications

resolution	1200 dpi (21 μm)
optical density	0.37D~ 4.5D
scanning area min	2.5” x 2.5” (63.5 mm x 63.5 mm)
scanning area max	14“ x 200” (355.6 mm x 5080 mm)
scanning speed 3.5D	58 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.0D	110 sec @ 300 dpi, 14” x 17” grayscale
scanning speed 4.5D	232 sec @ 300 dpi, 14” x 17” grayscale

Film Specifications

film size min	2.5” x 2.5” (63.5 mm x 63.5 mm)
film size max	14“ x 200” (355.6 mm x 5080 mm)
film holder	8.5” x 4.5”, 12” x 3 1/3”

Power

voltage	AC 100V to 240V, 50/60 Hz
max current	4.0A (Input)
power consumption	Max. 320 W

Operating Environment

operating temperature	50° to 104°F (10° to 40°C)
operating relative humidity	20% to 85%
storage temperature	14° to 140°F (-10° to 60°C)
storage relative humidity	20% to 95%

Weight and Dimensions

dimensions	12.9” x 18.7” x 8.8” (329 x 474 x 224 mm)
dimensions with input tray	329 x 474 x 544 mm
dimensions with input and output tray	586 x 474 x 934 mm
weight	44.5 lbs. (20.2 kg)
