PRO1 Live Audio System
Operator Manual

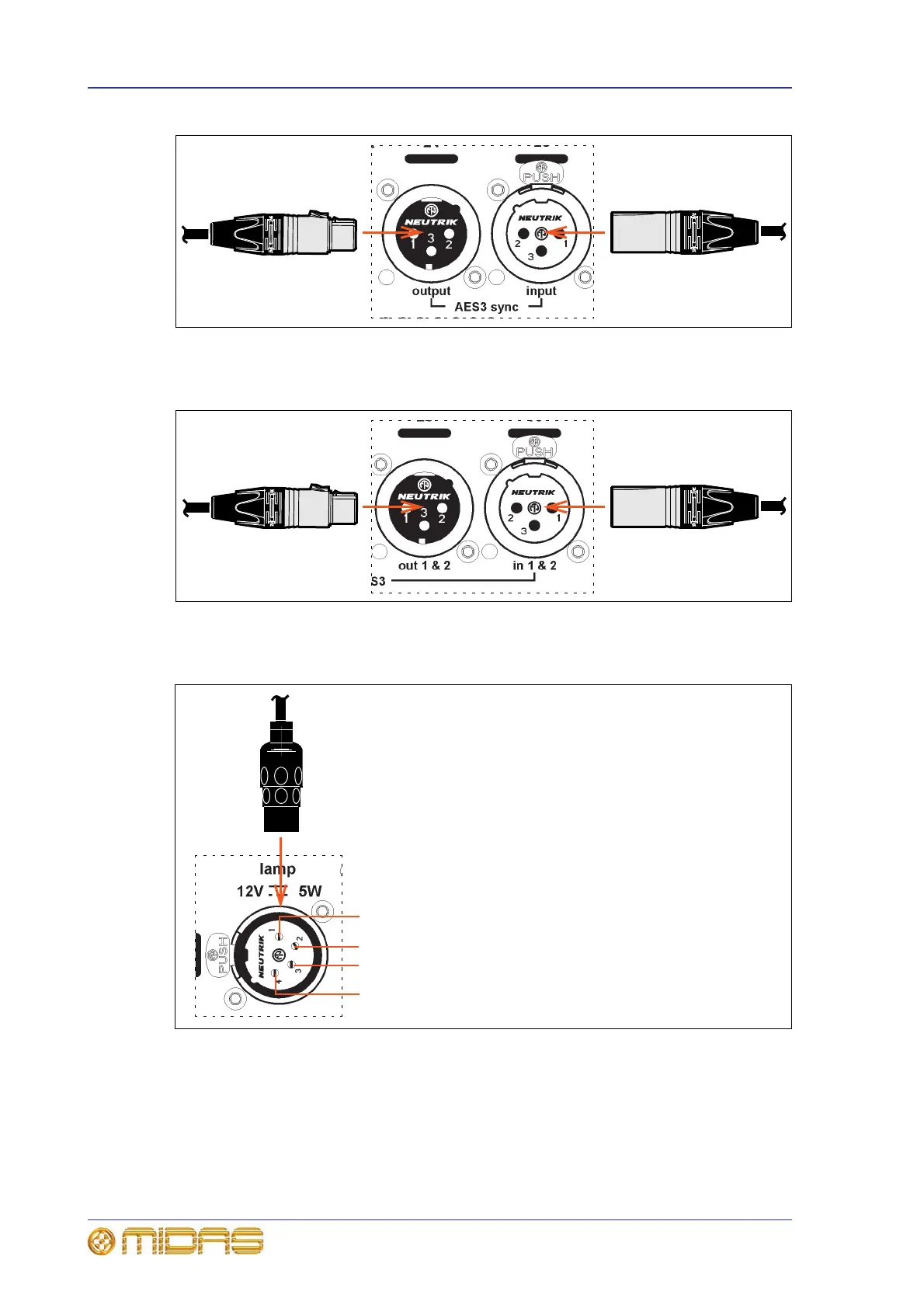

The AES3 sync input and output connectors are for synchronisation with external
devices that can transmit/receive a 96kHz AES3 signal. They accept a female XLR plug
and male XLR plug, respectively.
The two pairs of AES3 input and output connectors are for synchronisation with external
devices that can transmit/receive a 96kHz AES3 signal. They accept a female XLR plug
and male XLR plug, respectively.
IEC connector for mains power supply. 1. N/A. 2. N/A. 3. Ground. 4. 12V.
