EQ safe

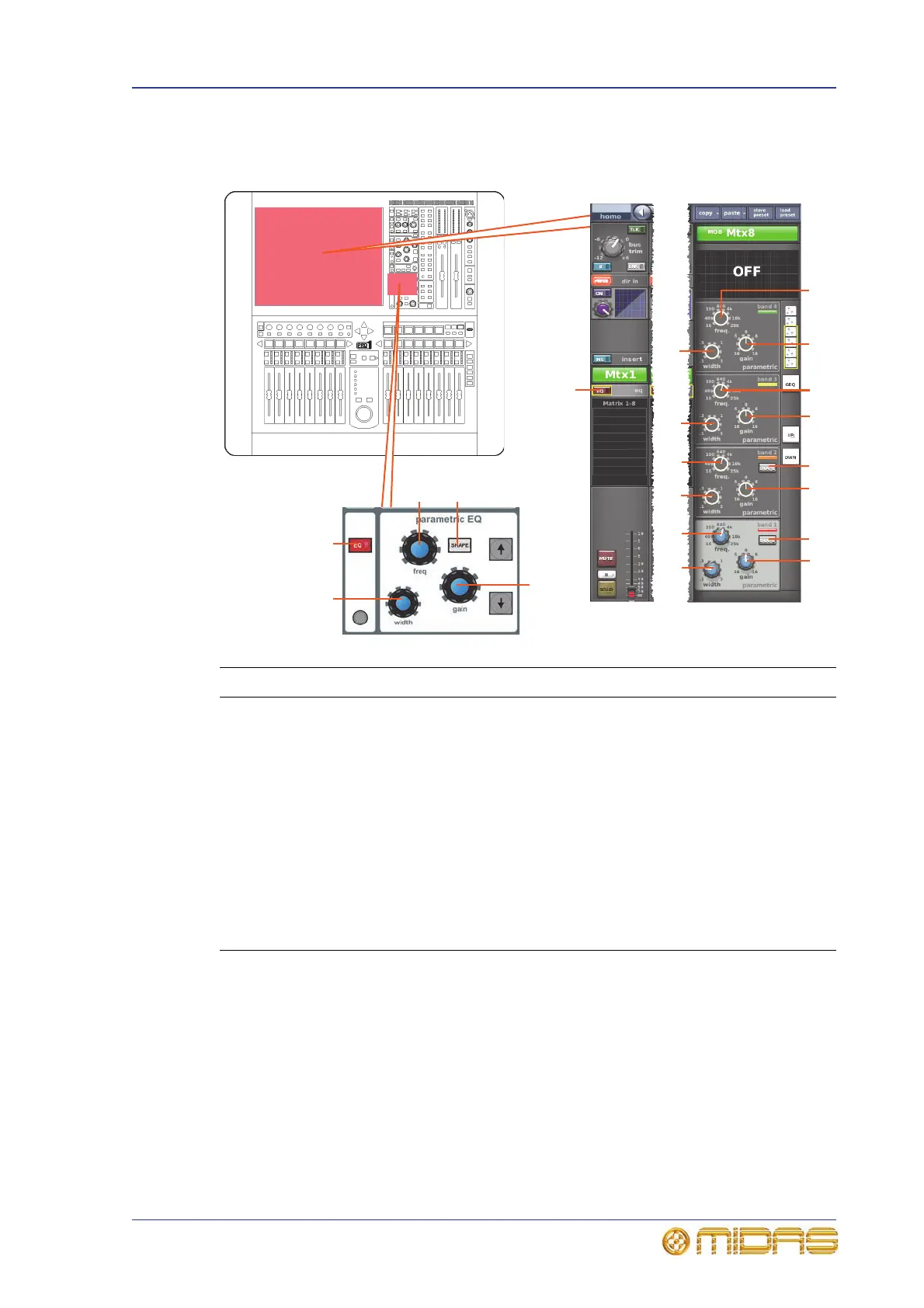

This section shows the matrix parameters protected by the EQ safe.
Note: Although bands 5 and 6 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4, and band 6 also has item 7.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5 SHAPE switch Selects band 1 shelving modes: parametric,
warm, high pass 6dB or high pass 12dB
6 SHAPE switch Selects band 2 shelving modes: parametric or high
pass 24dB
7 SHAPE switch (not
shown on diagram of
GUI above)
Selects band 6 shelving modes: parametric, soft,
low pass 6dB or low pass 12dB
