Midas PRO1 User Manual

Connecting up 29
PRO1 Live Audio System
Operator Manual

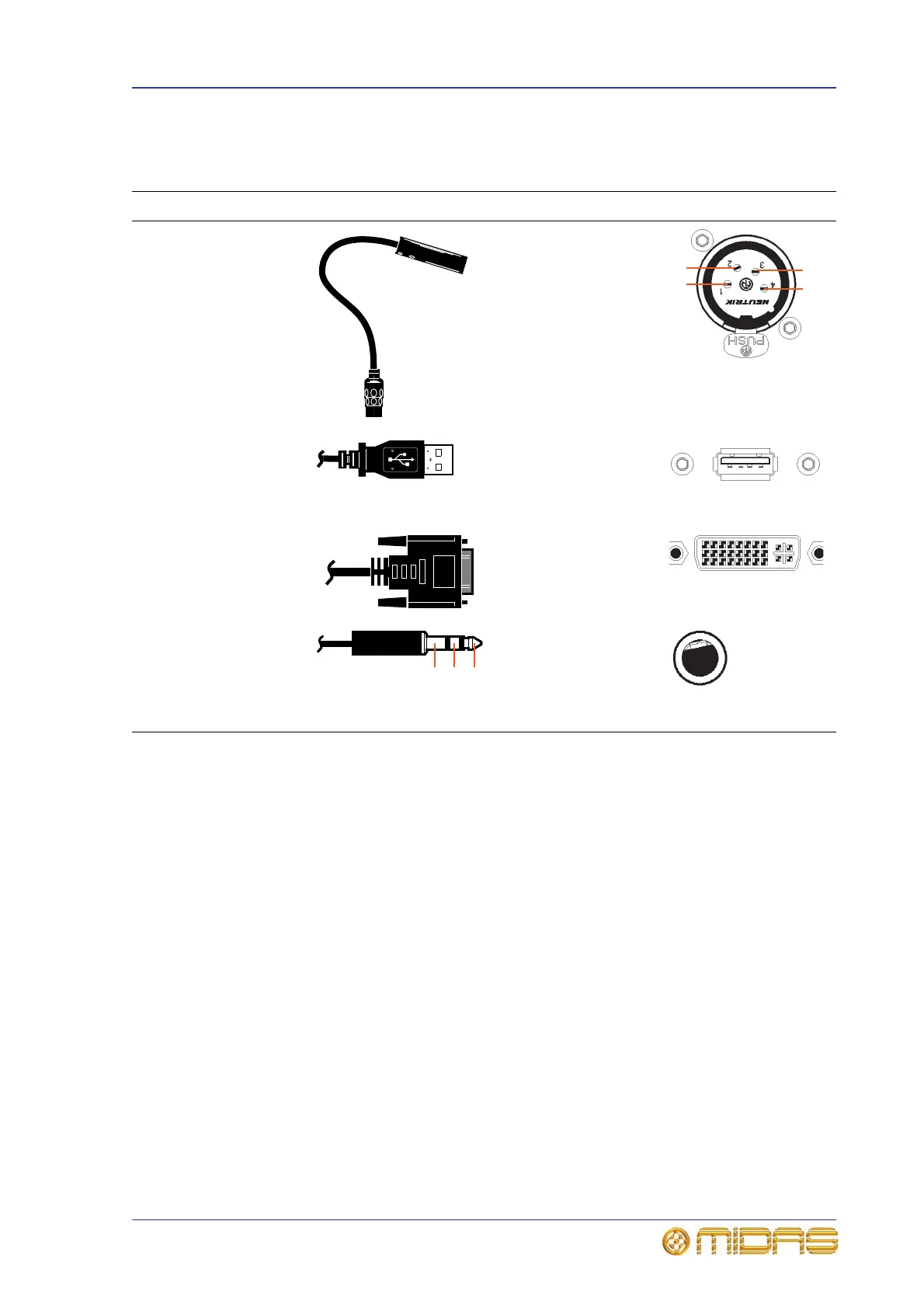

Other connections
The section gives details of the other PRO1 Control Centre interconnections.
The diagnostics socket is for service personnel use only.
Description Example Pinouts Example of socket
4-pin, male XLR
chassis connector(s)
on the rear panel for
connecting 12V/5W
lamp(s)
1 = N/A
2 = N/A
3 = ground
4 = 12V
USB type A socket N/A
DVI screen output
socket for connecting
N/A
foot switch socket
for connecting a 1/4”
TRS Jack plug
1 (tip) = foot
switch 1
2 (ring) = foot
switch 2
3 (sleeve) =
ground
4
1
3
2
123
