Aux Sends 495

PRO1 Live Audio System

Operator Manual

Fader

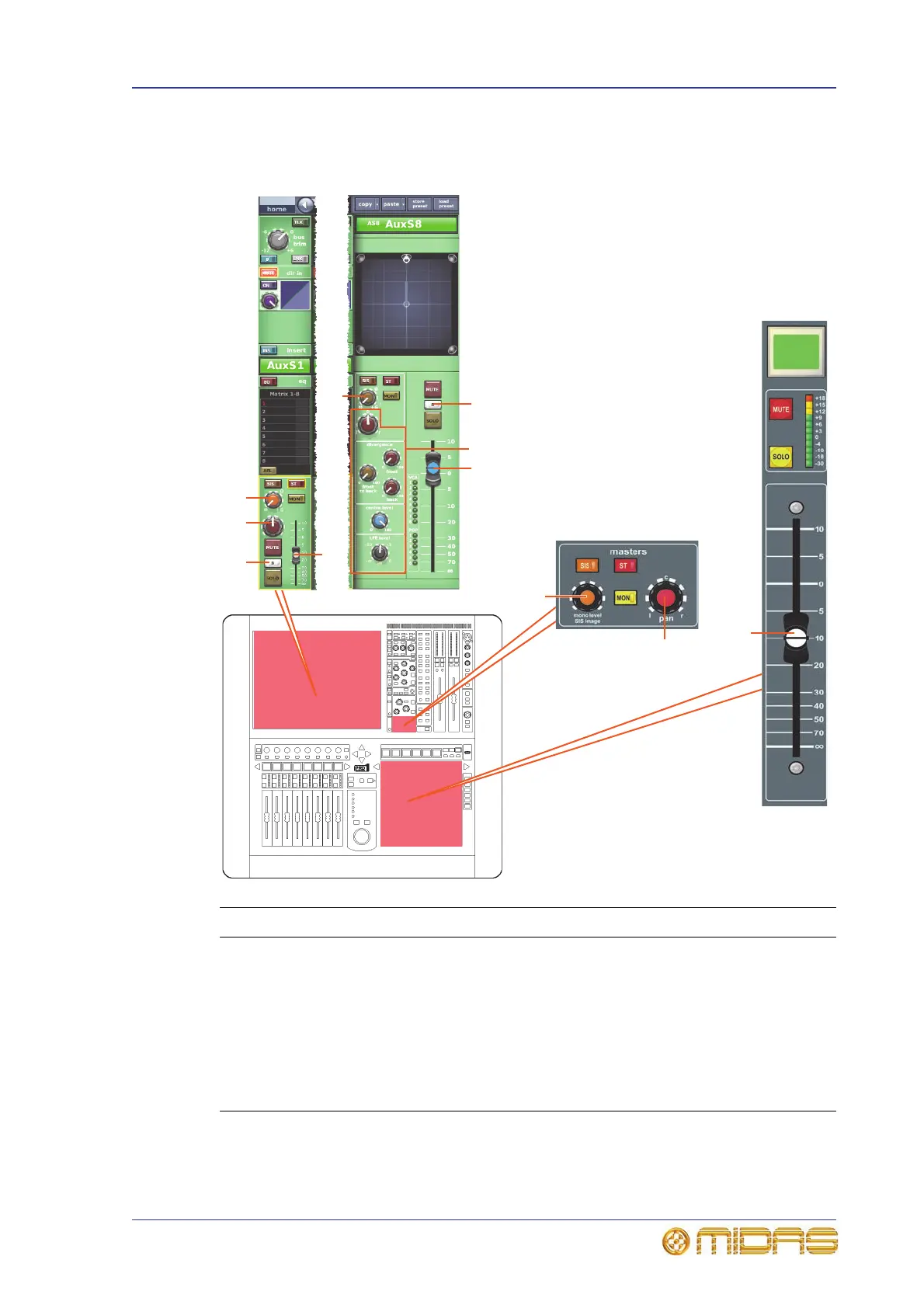

This section shows the fader control parameters that are linked across a channel pair.

Item Control Parameter

1 Fader Level

2 B switch Solo B on/off

3 mono level/SIS

image control knob

Mono send level. (Only linked when SIS is out on

both channels and surround mode is not selected.)

4 Panning control knobs Surround panning, which includes all surround

sound parameters, provided Surround Mode is

not configured as None (see “Selecting the

surround mode” on page 225)

Important Safety Instructions3
