Aux Sends (1 to 16)

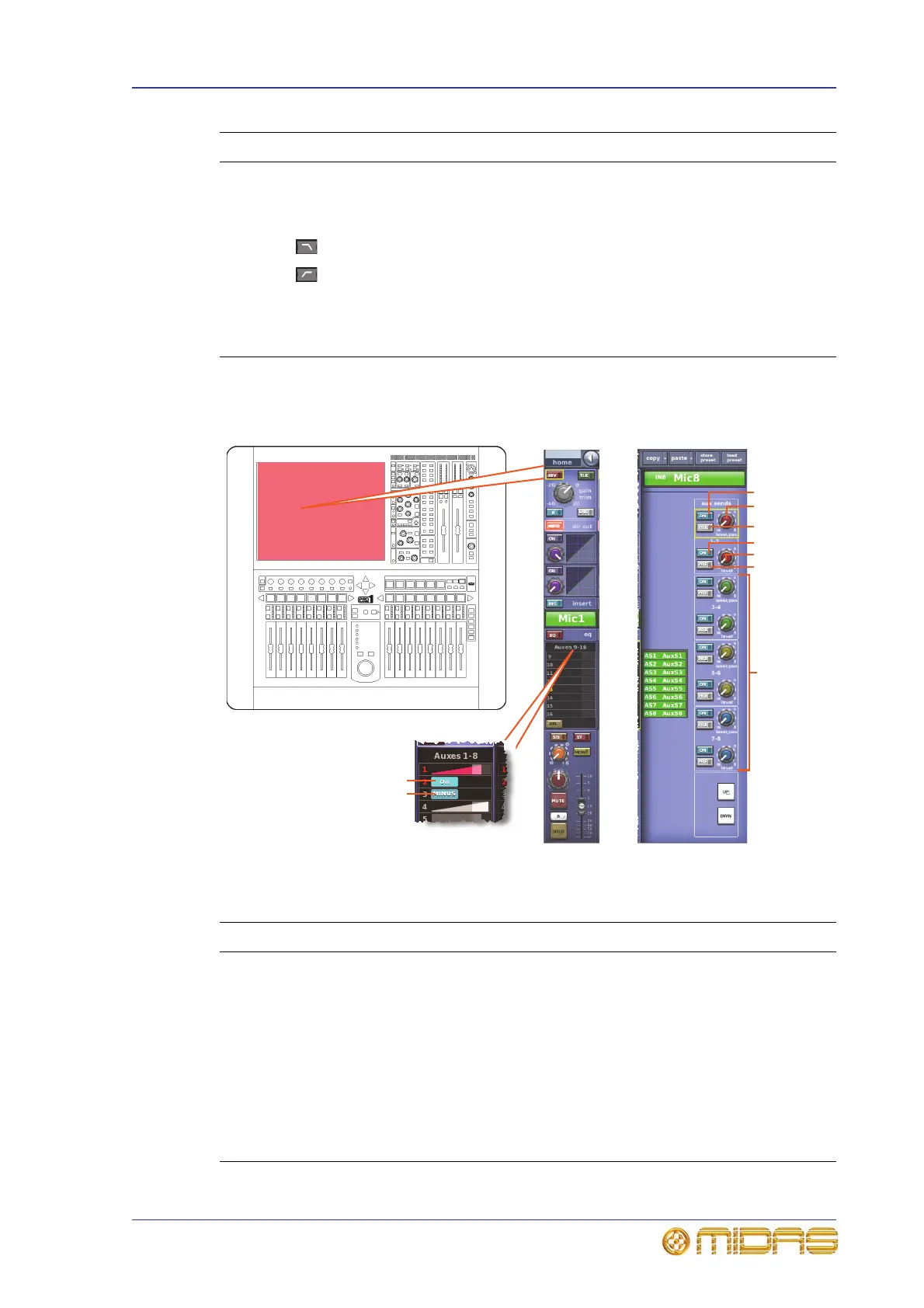

This section shows the aux send parameters copied through scenes.
Note: Only aux sends 1 to 8 are shown above, but this is typically the same for all of
the 16 aux sends.
7 SLOPE pushbutton Low pass filter slope 6dB or 12dB
8 low pass control
knob
Low pass filter frequency
9
/[IN] switch
Low pass filter in/out
10
/[IN] switch
High pass filter in/out
11 high pass control
knob
High pass filter frequency
12 SLOPE pushbutton High pass filter slope 12dB or 24dB
Item Control Parameter
1 ON switch Bus send on/off
2 level/pan control
knob
Bus level, or pan when bus is linked
3 PRE switch Pre-fader on/off
4 level control knob Bus level
5 On switch Aux bus send on/off — only available when aux
bus is in group mode
6 MINUS switch Aux bus send mute on/off — only available when
aux bus is in mix minus mode
Item Control Parameter
3
2
1
3
4
1
As per
bus sends
1-2 above
5
6
