528
Appendix K: Parameters Copied Through Scenes
PRO1 Live Audio System
Operator Manual
Gates
Not applicable.
EQs

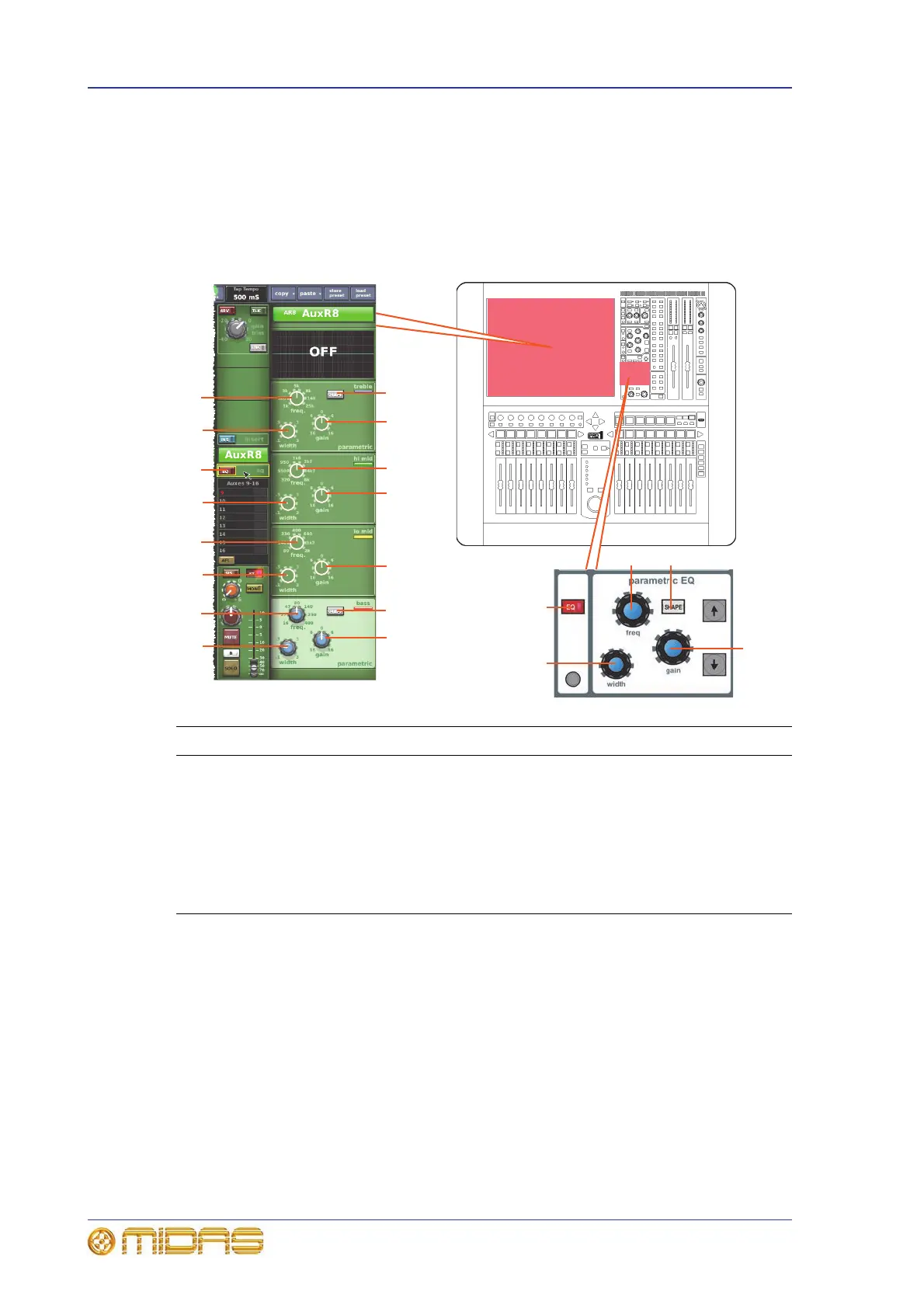

This section shows the EQ (parametric) pr
ocessing area parameters
copied through
scenes.
Item
Control
Parameter
1
EQ
switch
EQ on/off
2
gain
control knob
EQ gain level
3
width
control knob
EQ width
4
freq
control knob
EQ frequency
5
SHAPE
switch
T
reble: parametric, bright, classic or soft
6
SHAPE
switch
Bass: parametric, deep, classic or w
arm
5
2
3
4
1
2
3
2
3
4
6
2
3
4
1
4
5/6
2
3
4
545
547
