Aux Sends (aux channels) 537
PRO1 Live Audio System
Operator Manual
Fader Sections

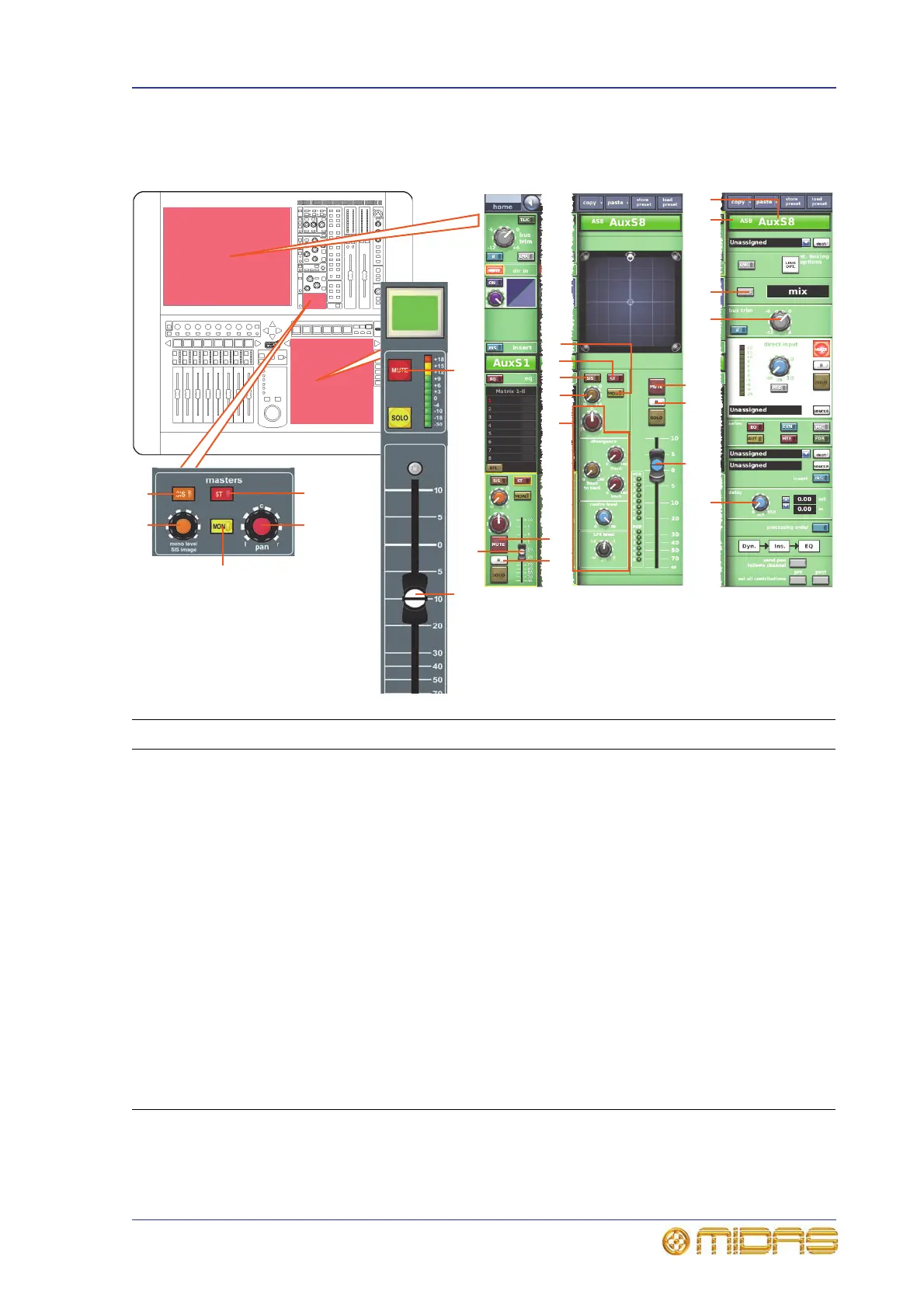

This section shows the fader and master routing parameters copied through scenes.
Item Control Parameter
1 ST switch Stereo on/off
2 MON switch Mono on/off
3 SIS switch Spatial imaging system on/off
4 Panning control knobs Surround panning (includes all surround sound parameters)
5 mono level/SIS image
control knob
Mono level (SIS off) or SIS image (SIS on)
6 Fader Level
7 MUTE switch Mute on/off
8 B switch Solo B in/out
9 Field Channel name
10 bus trim control knob Bus trim level
11 delay control knob Delay time
12 Field Channel colour
13 MODE button Bus mode
7
6
7
3
1
5
4
2
12
8
10
11
9
13
8
6
3
5
1
4
2
7
6
