Midas PRO1 User Manual

About the Patching screen 49
PRO1 Live Audio System
Operator Manual

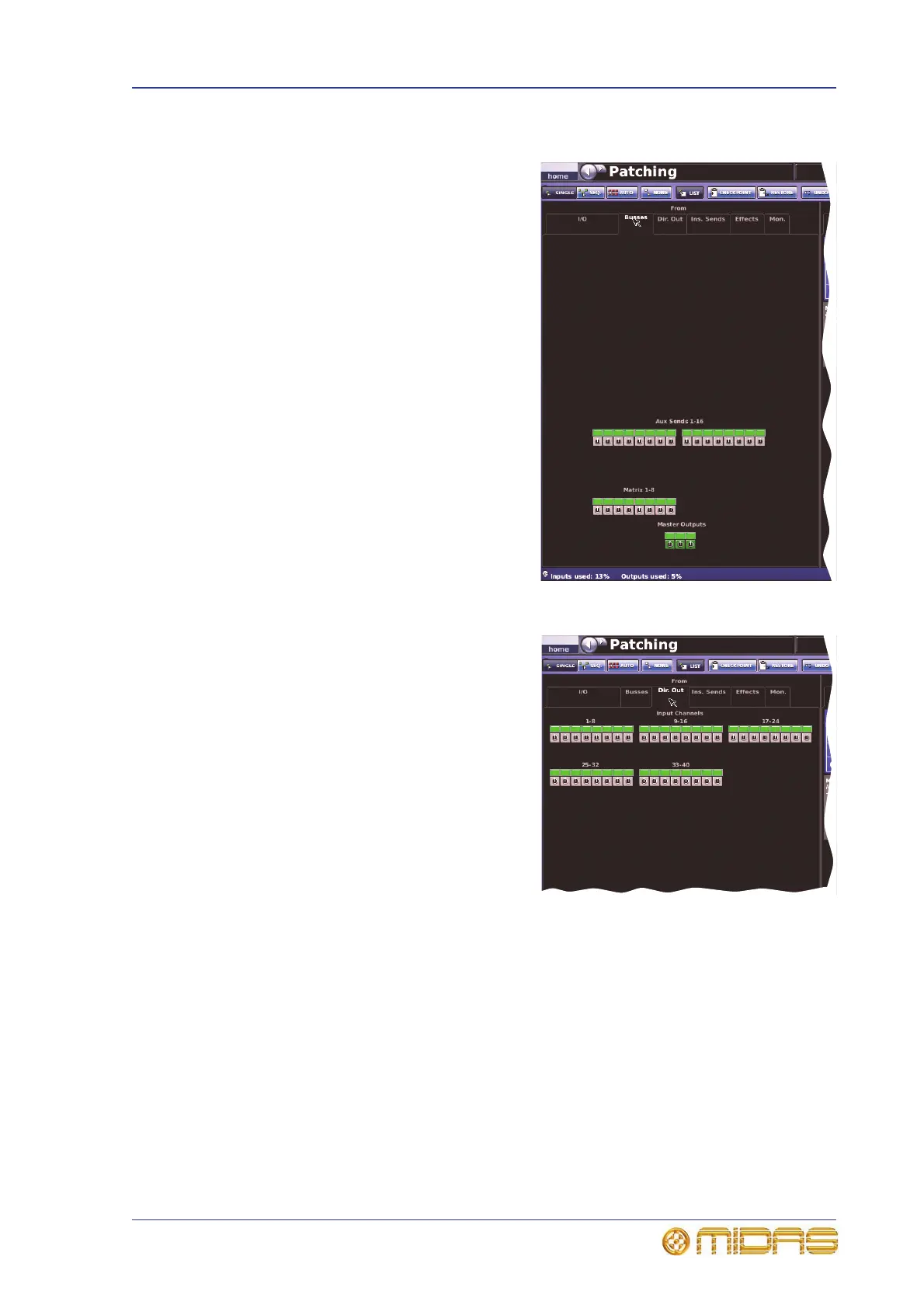

Busses tab — From
The Busses tab allows routing from the
auxes, matrices and master outputs.
This tab can also be accessed directly via
the dest button in the mixes section of the
input channels and in the direct input
section of the output channels (see “Direct
input” on page 291).
Dir. Out (Direct Out) tab — From
The Dir. Out (Direct Out) tab allows you to
patch any of the 40 input channels internally.
For example, to an effect or to provide a way
out of the DL251/DL252 Audio System I/O
via a line I/O unit.
This tab can also be accessed directly via the
dest button in the direct output section of
the input channels.

Midas PRO1 Specifications

General

Type	Digital Mixing Console
Talkback	Yes
Channels	48 input channels
EQ Bands	4-band parametric EQ per channel
Outputs - Main	8 x XLR (on rear)
Display	15" TFT
Connectivity	Ethernet, USB, AES/EBU
