Miele G 5705 - Fully Integrated Models; Figure D-5: Fully Integrated Model

Technical Information
22
G 5xxx
2.2 Fully Integrated Models

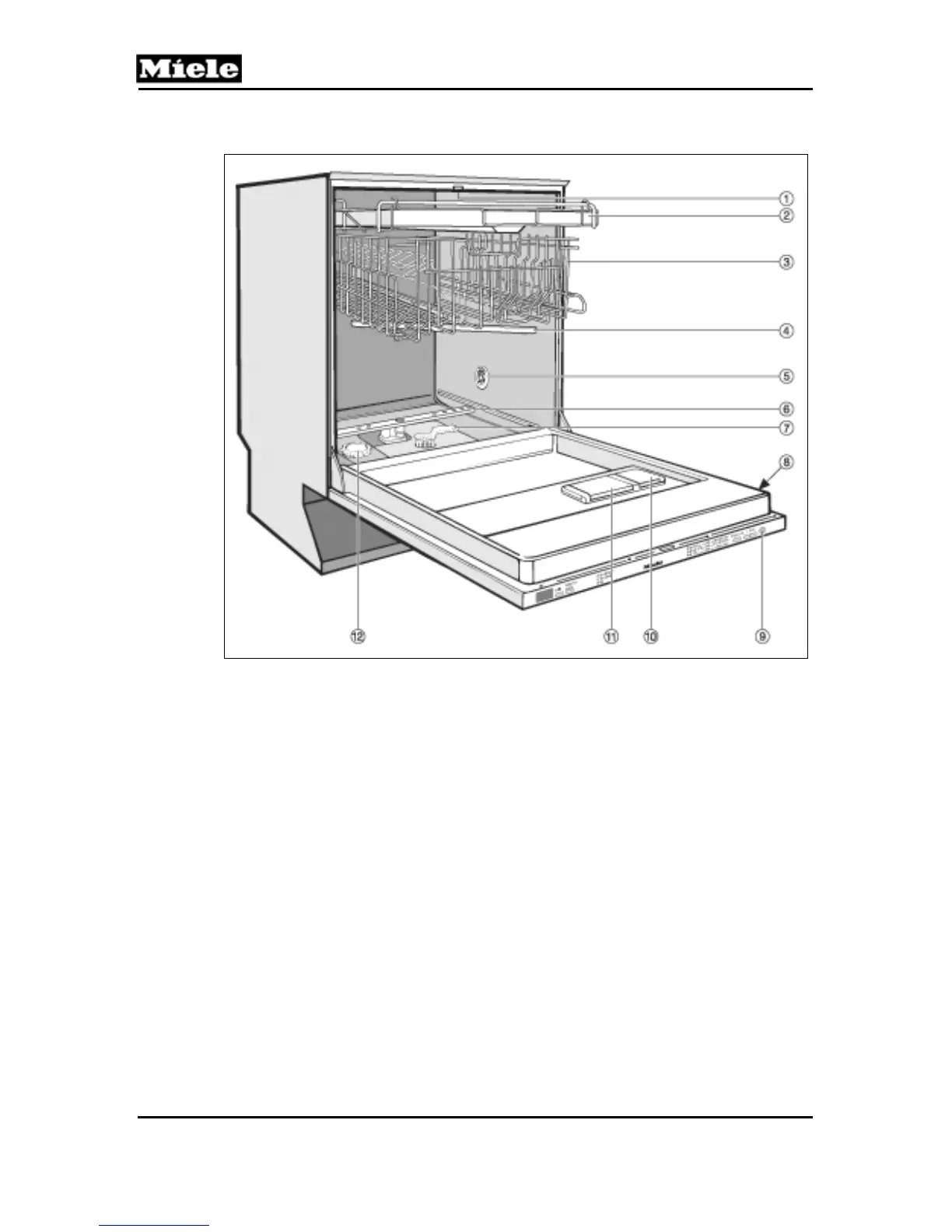

Figure D-5: Fully Integrated Model
1 Upper spray arm (not visible) 7 Filter combination
2 Cutlery tray (model-dependent) 8 Data tag
3 Upper basket 9 Optical interface
4 Middle spray arm 10 Rinse aid reservoir
5 Air inlet for drying (model-dependent) 11 Dual-compartment detergent dispenser
6 Lower spray arm 12 Salt container
