Technical Information
45
G 5xxx

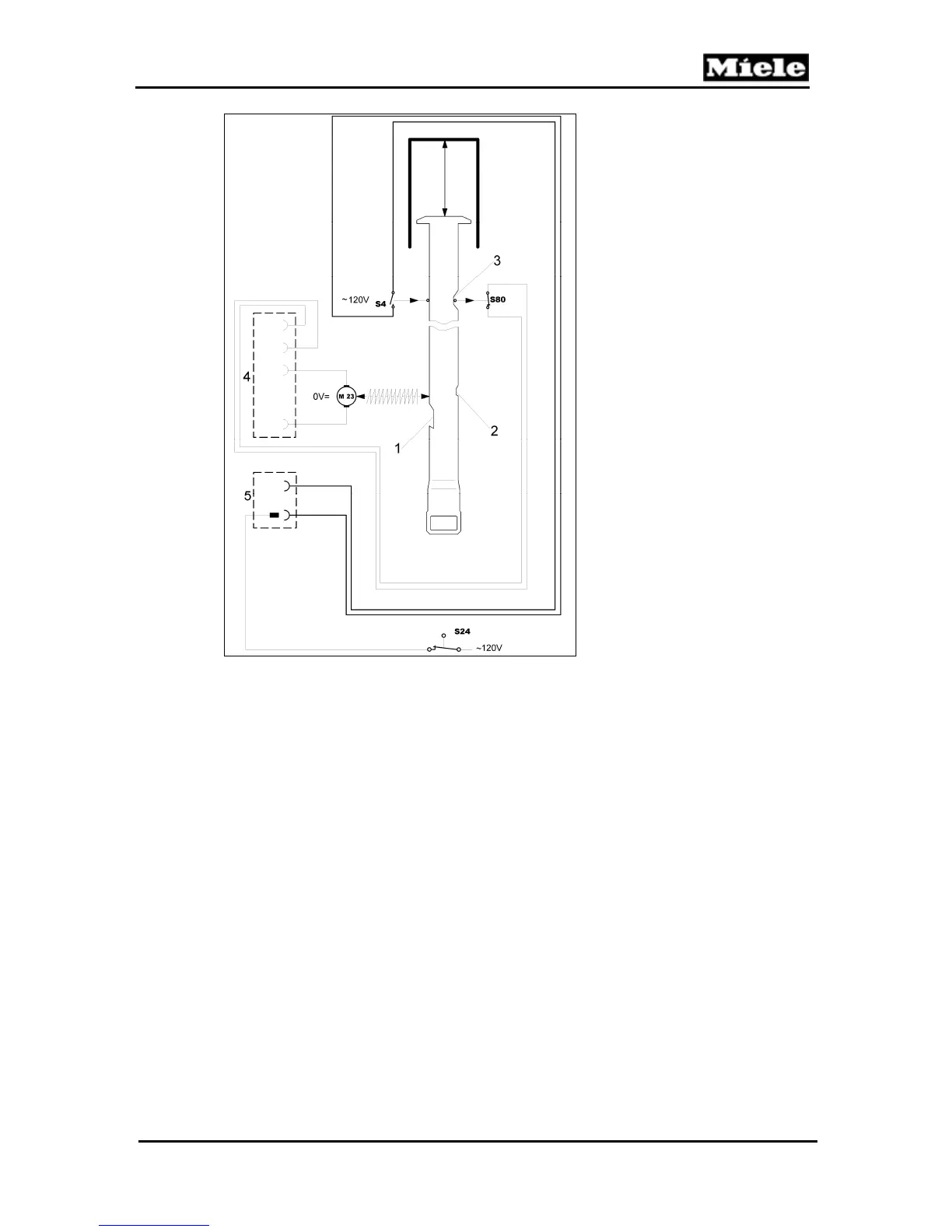

Figure 020-8: Door Lock Latch, Position 3
1, 2, 3 Latch positions 1, 2, 3
4 Plug 2
5 Plug 1
S4 Door switch (120VAC), open
S80 Door movement switch (low voltage),
closed
S24 Door contact switch (120VAC), closed
M23 Door-locking motor (DC motor); no
voltage applied
