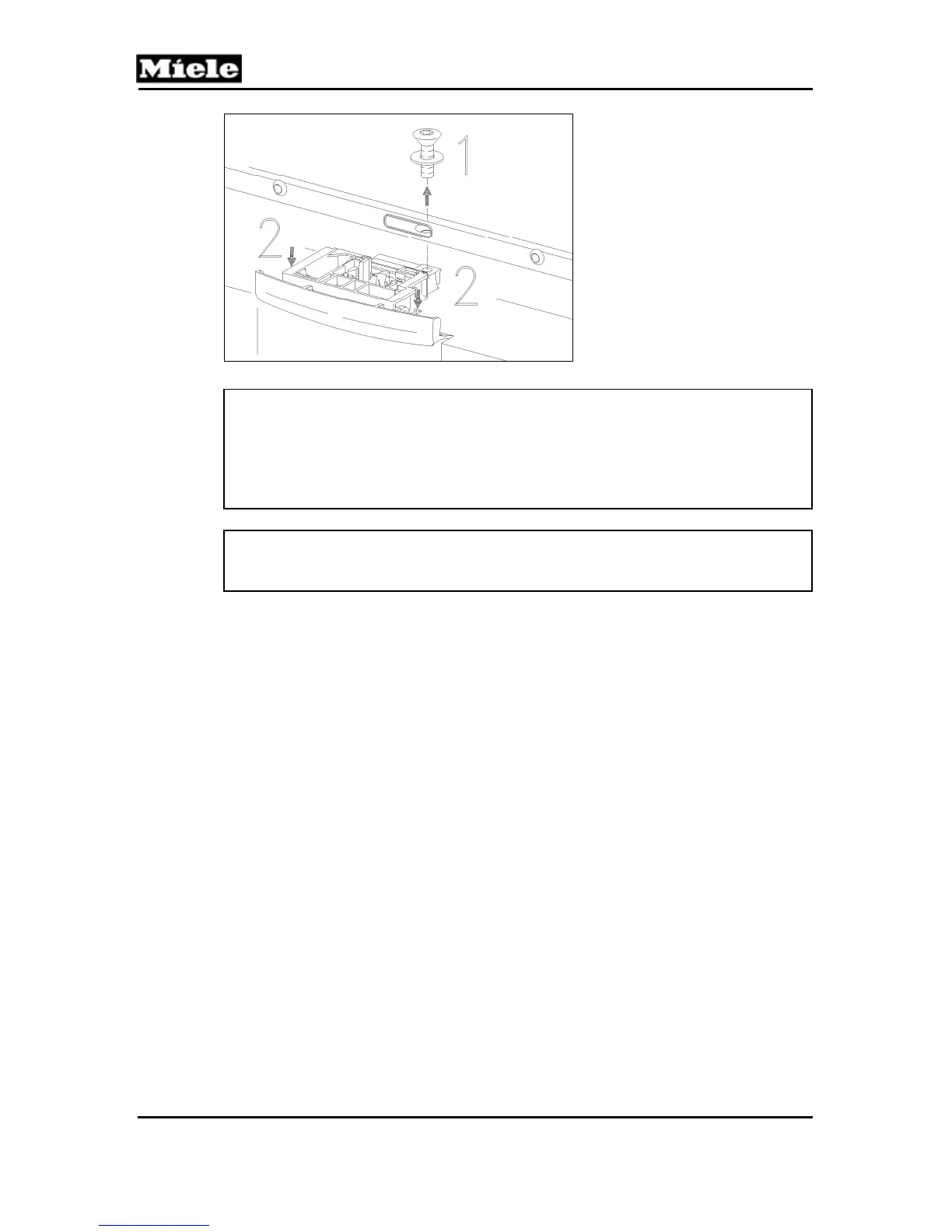

Figure 020-16: Door Lock Removal (Integrated Models)
Note:
During reassembly, ensure that:
1. The protective foil is NOT pushed to one side or torn.
2. The foil tongue is positioned between the retaining bracket and door lock.
3. The foil is positioned under the plug area when the retaining bracket is re-
installed.
Important:
Ensure that the small plastic seal under the door lock retaining screw is re-
installed correctly during reassembly.
4.6 Activating the Door Lock Emergency Release (Fully Integrated
Models)
1. Disconnect the appliance from the power supply.
2. Remove the door outer panel (Section 030-4.3).
3. To return the locking latch to the right position, push on the emergency
release with a screwdriver; see Figure 020-17, Item 1
.
