Miele G 5705 - Figure 020-4: Drying Plus (after Program End); Figure 020-5: Door Lock Latch Plugs

Technical Information
42
G 5xxx

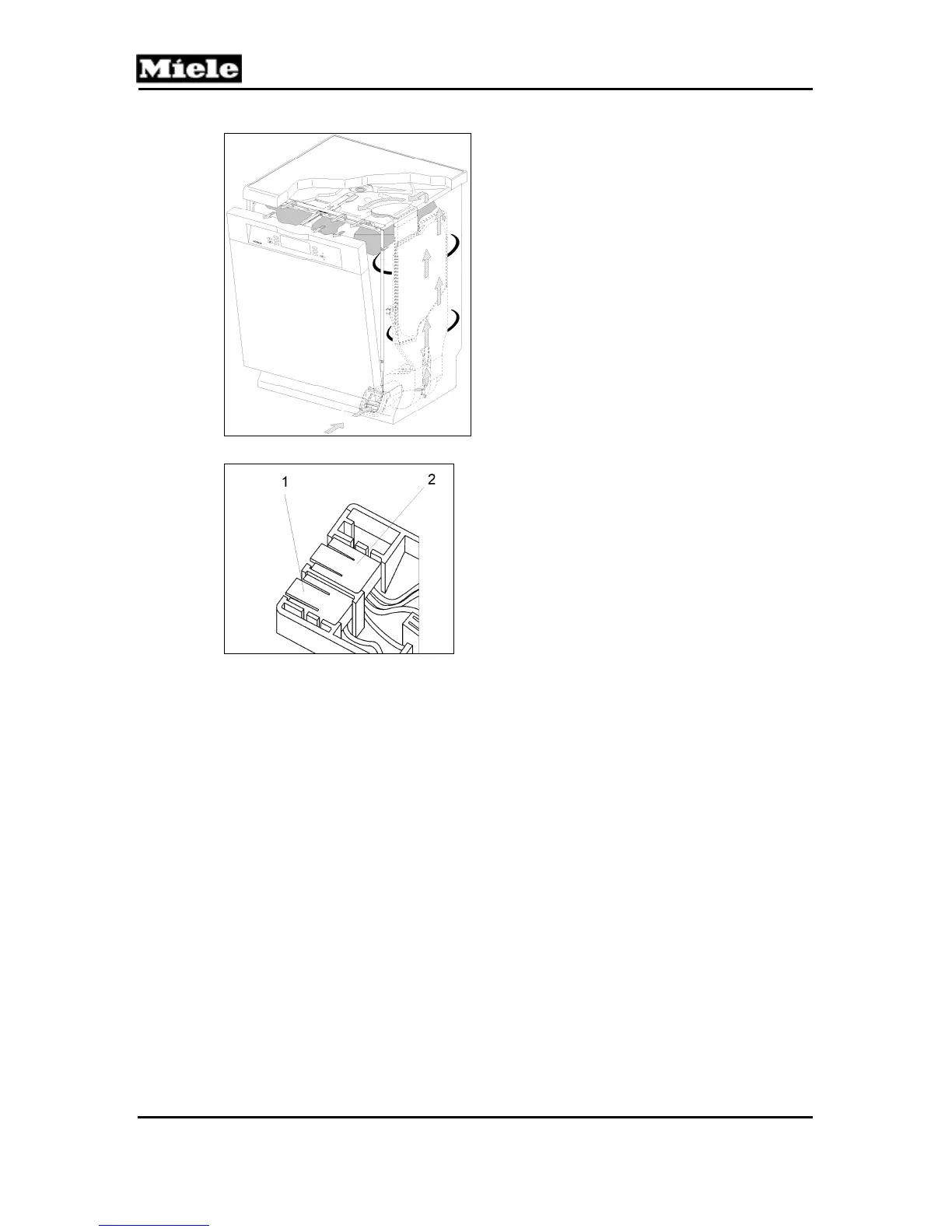

Figure 020-4: Drying Plus (after Program End)
Figure 020-5: Door Lock Latch Plugs
The latch can be set to 3 different positions via a DC motor (16V, 10W). For
the electronically controlled comfort door closing aid (G 59x5 models),
positioning is controlled via the control-power module (SLT), and monitored
via 2 single-pole limit switches.
Position 1 - Door closed, latch completely retracted:
To close the door, the door lock is locked and the latch is completely
retracted. See Figure 020-6.
1 Plug 1
2 Plu
g
2
