3.2 G 5105, G 5225 (Crystal with Touchtronic and Display)

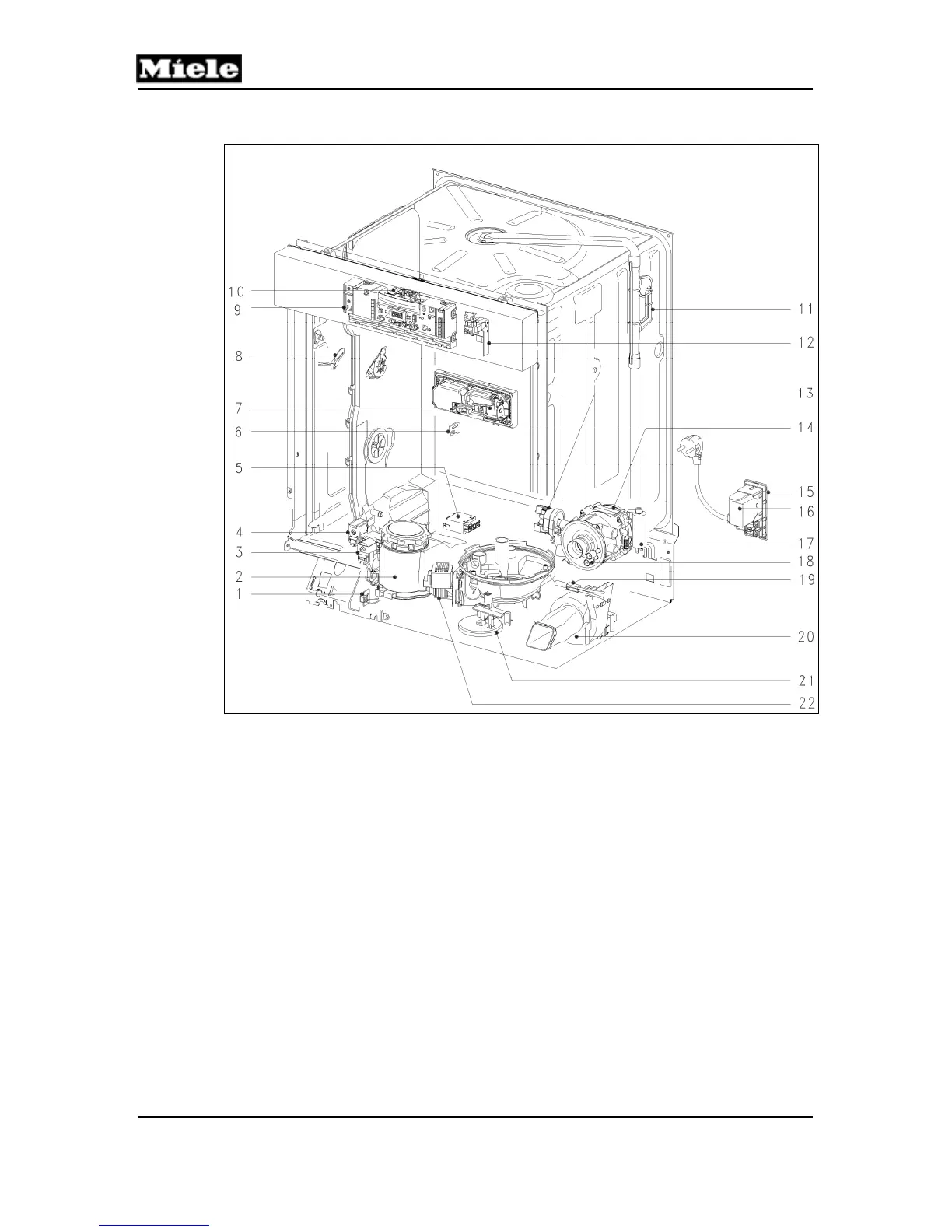

Figure D-7: G 5105, G 5225 Component Layout
1
Salt float switch, B8/2
13
Heater pressure switch, B1/13
2
Salt reservoir
14
Circulation pump (MPEH or MPEW), M6
3
Reactivation solenoid, Y38
15
Terminal block, X3/1
4
Wash-water hardness solenoid, Y5
16
Interference suppression, Z1 or Z2
5
Heater relay, K1/1
17
Circulation pump capacitor, C6
6
Rinse aid float switch, B8/1
18
Heater, R1
7
Combination dispenser solenoid, Y50
19
Temperature sensor (NTC), R30
8
Flow meter, B3/4
20
Fan, M2
9
Electronic, 1N1
21
Overflow float switch, B8/3
10
Door contact switch, S24
22
Drain pump, M8
11
Turbidity sensor, B3/10
Not shown
Inlet valve, Y63
12
Main switch, S2 (in base of appliance)
Not shown
Circulation pump slide shutter (MPEW
only), M24 and B3/12
