Technical Information
79
G 5xxx
2.5.2 Water Diverter with EGS

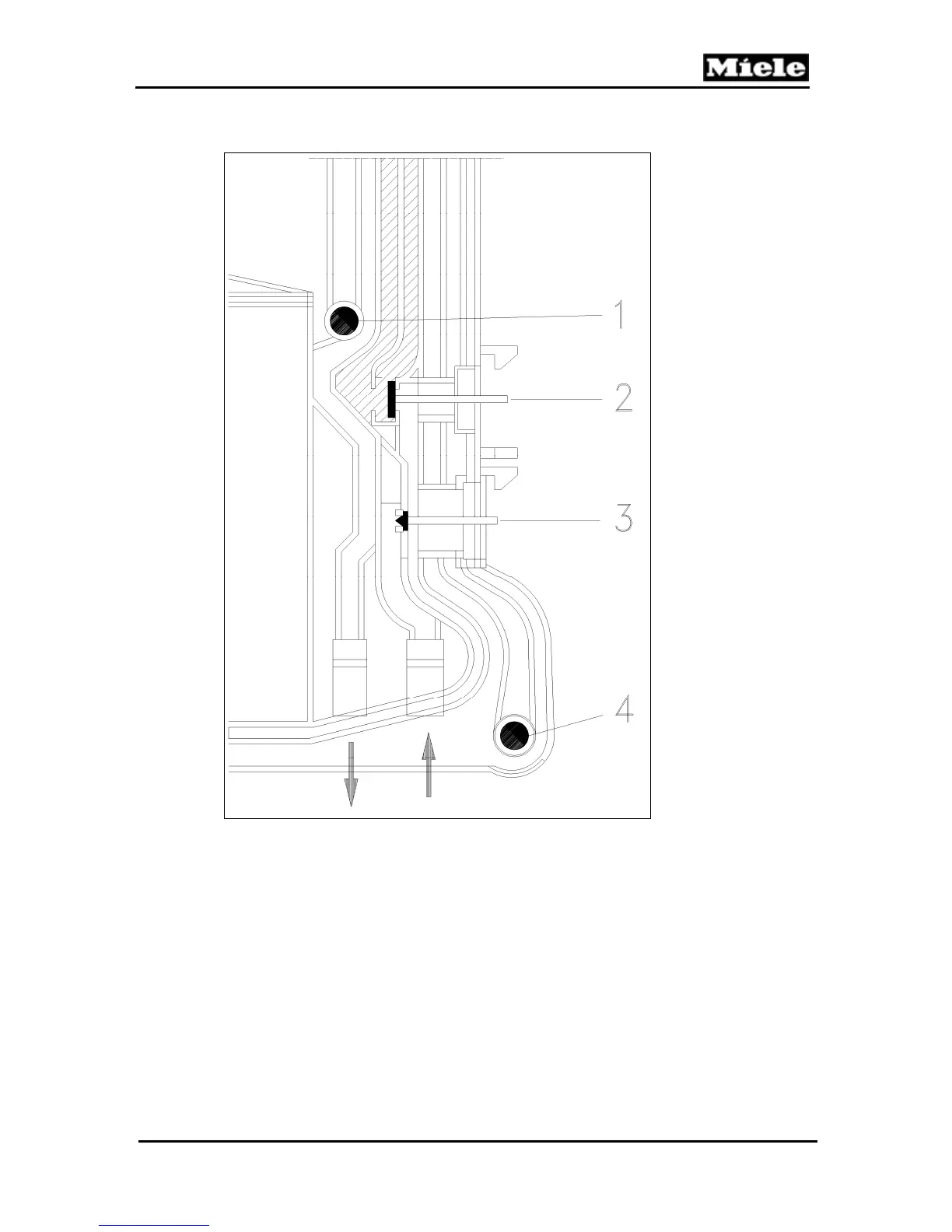

Figure 050-6: Water Diverter with EGS
1
Water outlet to sump
2
EGS valve activated
3
Reactivation valve
4
Connection to inlet valve
