Miele G 5705 - Figure 050-5: Water Diverter Without EGS; Water Diverter Without EGS

Technical Information
78
G 5xxx
2.5.1 Water Diverter without EGS

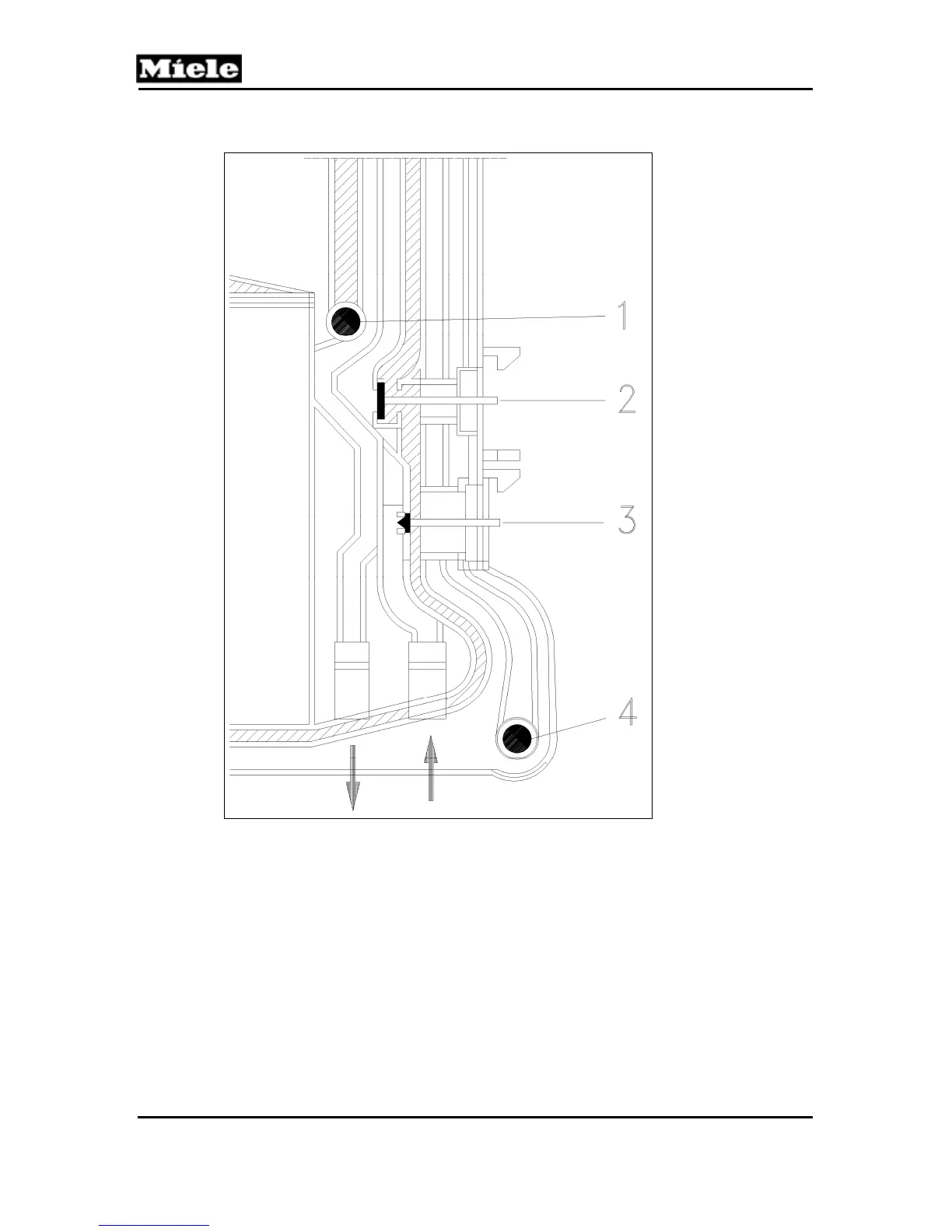

Figure 050-5: Water Diverter without EGS
1
Water outlet to sump
2
EGS valve not activated
3
Reactivation valve
4
Connection to inlet valve
