Miele G 5705 - Figure 020-9: Door Lock Latch, Intermediate Opening Position

Technical Information
46
G 5xxx
Intermediate position, opening:

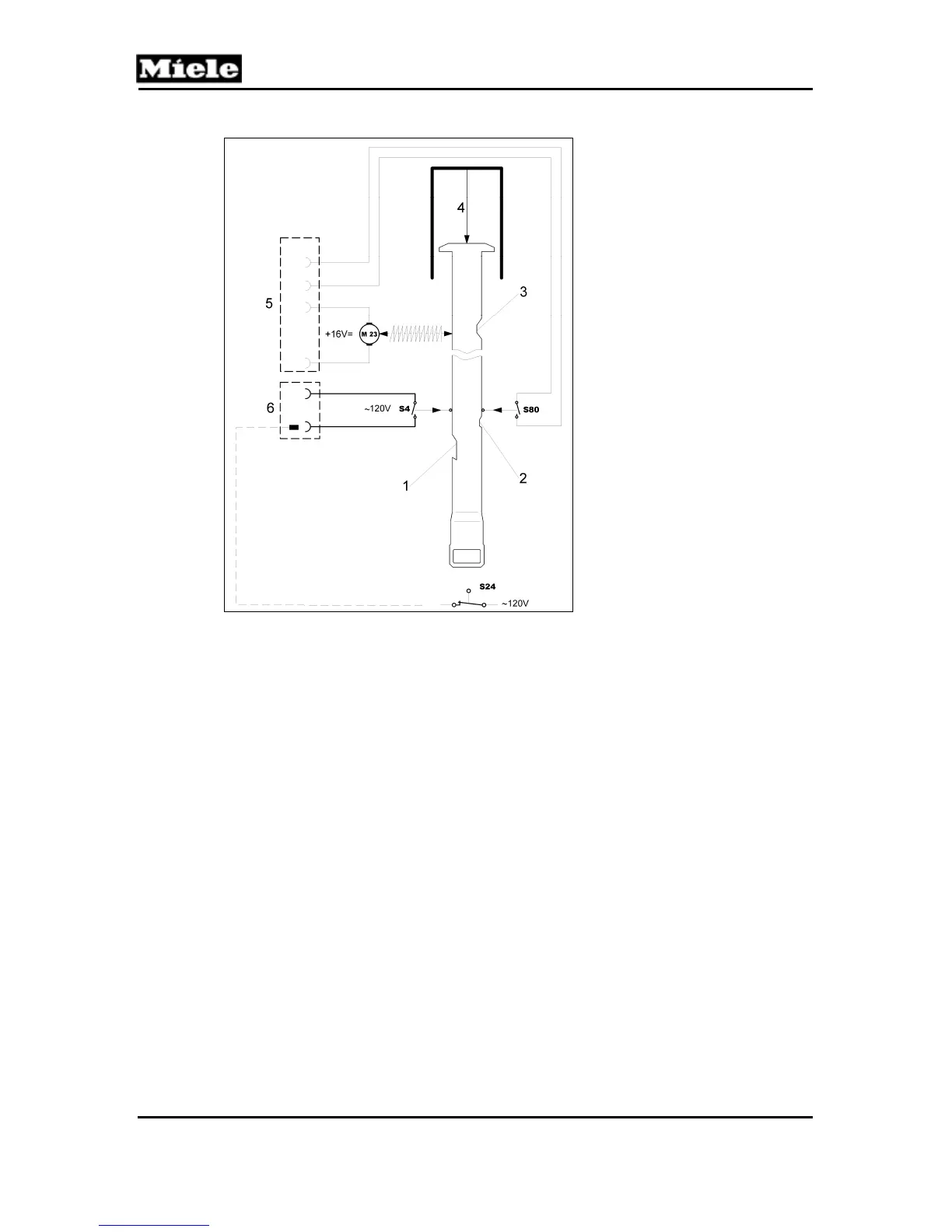

Figure 020-9: Door Lock Latch, Intermediate Opening Position
1, 2, 3 Latch positions 1, 2, 3
4 Direction of latch movement
5 Plug 2
6 Plug 1
S4 Door switch (120VAC), open
S80 Door movement switch (low
voltage), open
S24 Door contact switch (120VAC),
closed
M23 Door-locking motor (DC motor);
voltage applied, motor is
opening door
