4.4 Lower Access Cover Plate Removal
1. Uninstall the appliance.
2. Disconnect the appliance from the power supply.
3. Remove the drip pan. See Section 010-4.2.
4. Remove the two T20 screws securing the cover plate; see Figure 030-4,
Item 2.
5. Remove the cover plate.

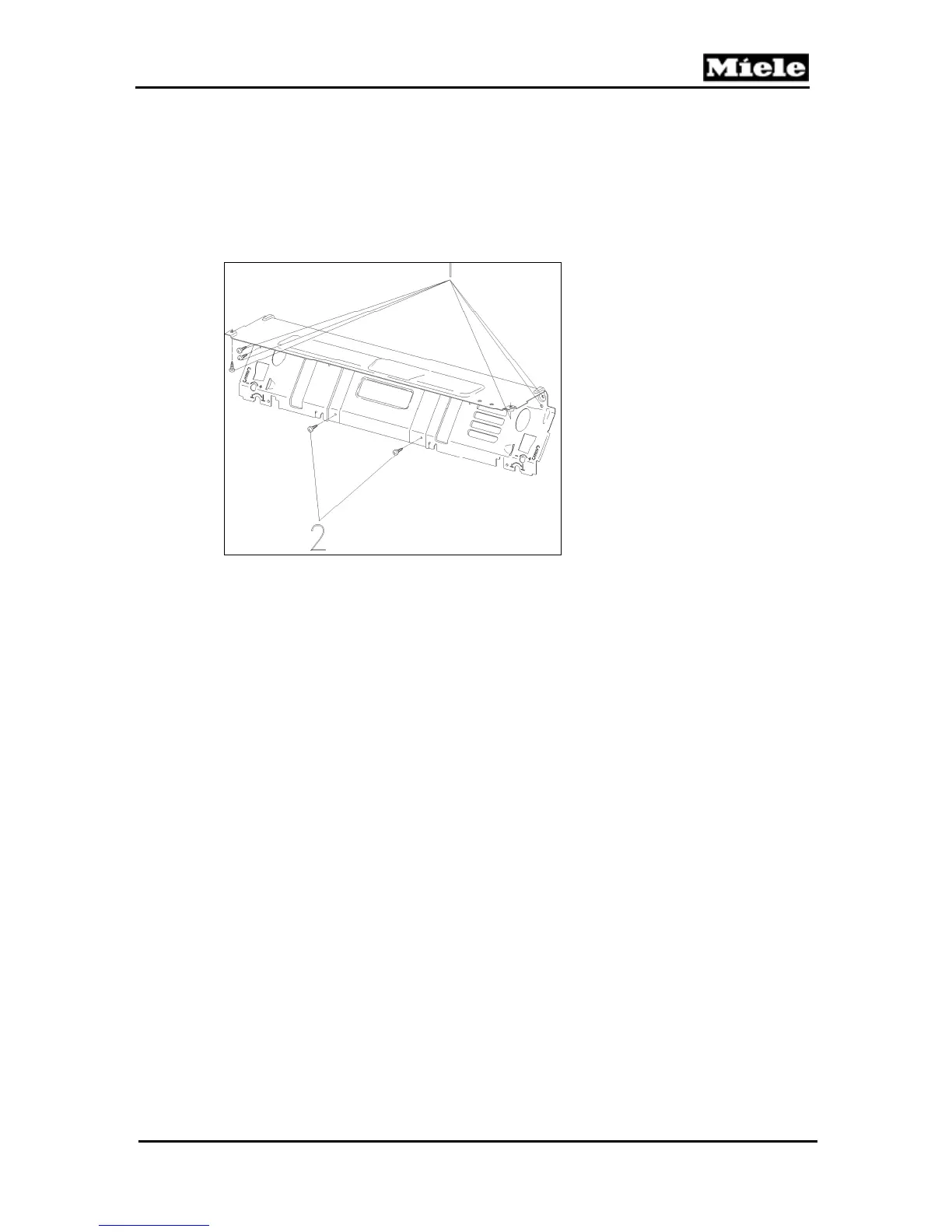

Figure 030-4: Lower Access Cover Plate and Connecting Strip Removal
4.5 Connecting Strip Removal
1. Uninstall the appliance.
2. Disconnect the appliance from the power supply.
3. Remove the drip pan; see Section 010-4.2.
4. Remove the cover plate. See Section 030-4.4.
5. Remove the retaining screws (six T20s); see Figure 030-4, Item 1.
6. Unscrew the two front machine feet enough that the connecting strip can
be removed.
7. Take off the connecting strip.
4.6 Terminal Block Removal
1. Uninstall the appliance.
2. Disconnect the appliance from the power supply.
3. Remove the cover plate. See Section 030-4.4.
2. Unhook the cover (see Figure 030-5, Item 1).
