Miele G 5705 - Automatic Door Opener and Drive Removal; Figure 020-17: Door Lock Emergency Release

Technical Information
55
G 5xxx

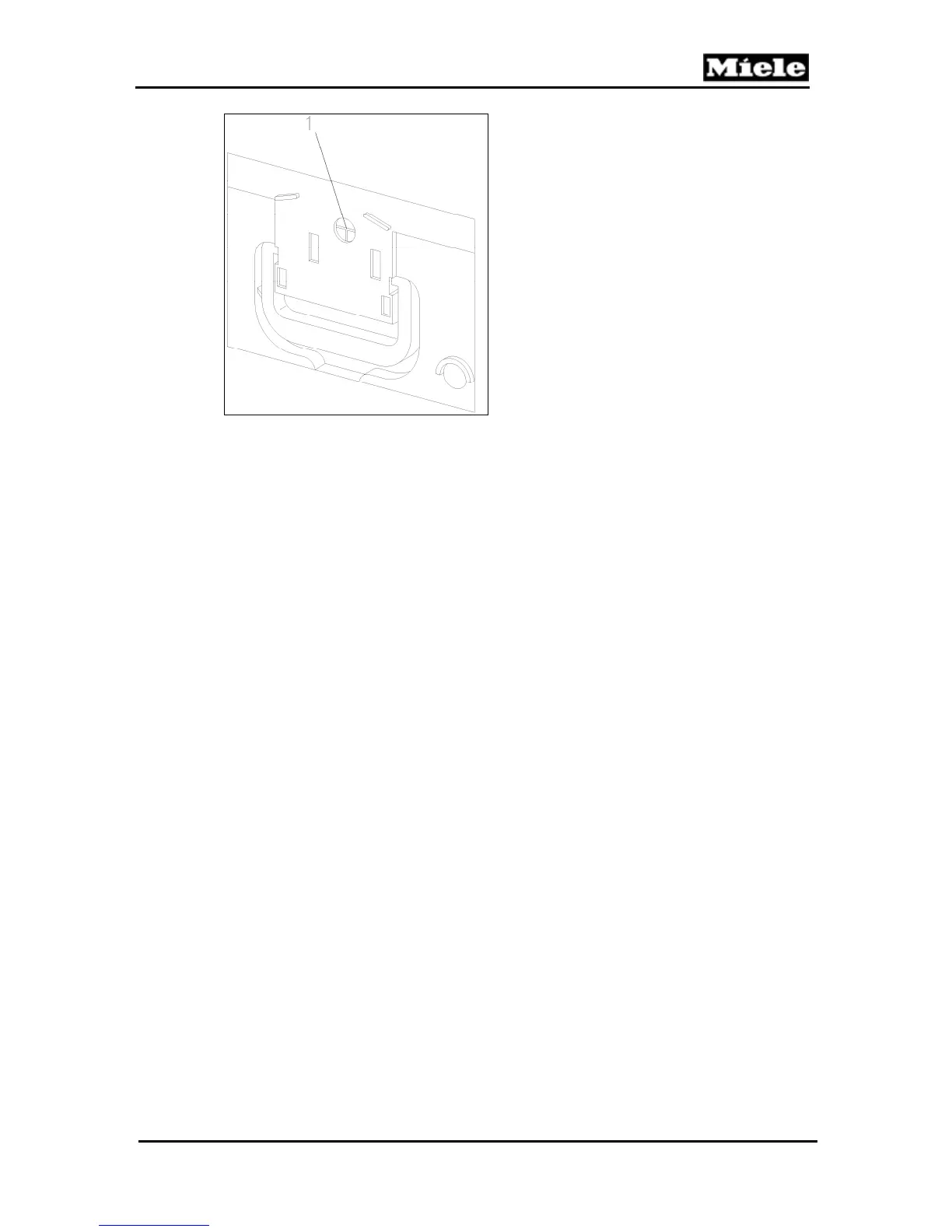

Figure 020-17: Door Lock Emergency Release
4.7 Automatic Door Opener and Drive Removal
1. Uninstall the appliance.
2. Disconnect the appliance from the power supply.
Opener:
1. Remove the top insulating mat.
2. Disconnect the wiring harnesses from both subassemblies.
3. Carefully pull off the adhesive sealing strip.
4. Release the two retainers (see Figure 020-18, Item A) and remove the
subassembly from the guide in the cabinet.
5. Pull out the Bowden cable protective sleeve (see Figure 020-18, Item 1)
in the direction of the arrow.
6. To release the Bowden cable, press the latch bar back (see Figure 020-
18, Item 2).
