Miele G 5705 - G 5775 Component Layout

Technical Information
28
G 5xxx
3.6 G 5775 (Dimension Plus with Incognito)

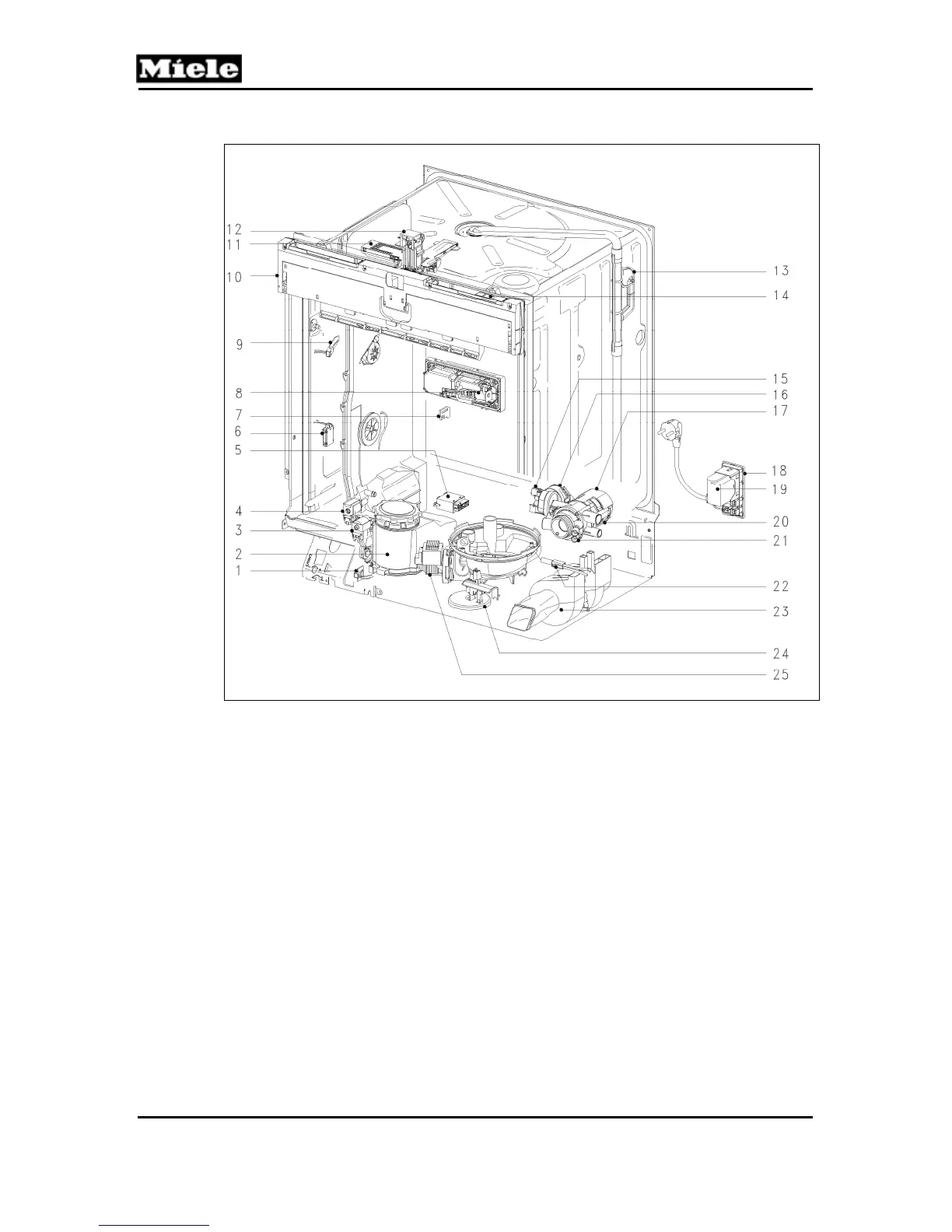

Figure D-11: G 5775 Component Layout
1
Salt float switch, B8/2
14
Main switch, S2
2
Salt container
15
Heater pressure switch, B1/13
3
Reactivation solenoid, Y38
16
Slide shutter, M24 and B3/12
4
Wash-water hardness solenoid, Y5
17
MPPW freq. conv. electronic
5
Heater relay, K1/1
18
Terminal block, X3/1
6
Spray arm sensing, B3-20
19
Interference suppression, Z1
7
Rinse aid float switch, B8/1
20
Circulation pump (MPPW), M6
8
Combination dispenser solenoid, Y50
21
Heater, R1
9
Flow meter, B3/4
22
Temperature sensor (NTC), R30
10
Electronic, 1N1 and 2N1
23
Fan, M2
11
Automatic door opener, A2
24
Overflow float switch, B8/3
12
Door contact switch, S24
25
Drain pump, M8
13
Turbidity sensor, B3/10
Not shown
Inlet valve, Y63
(in base of appliance)
