Miele G 5705 - Brilliantlight Control Module Removal; Figure 040-8: Brilliantlight Control Module

Technical Information
72
G 5xxx
4.7 BrilliantLight Control Module Removal
1. Uninstall the appliance.
2. Disconnect the appliance from the power supply.
3. Remove the drip pan. See Section 010-4.2.
4. Unclip the control module assembly, Figure 040-8, Item 1, and remove it
from its guide.
5. Disconnect the control module plug connections.

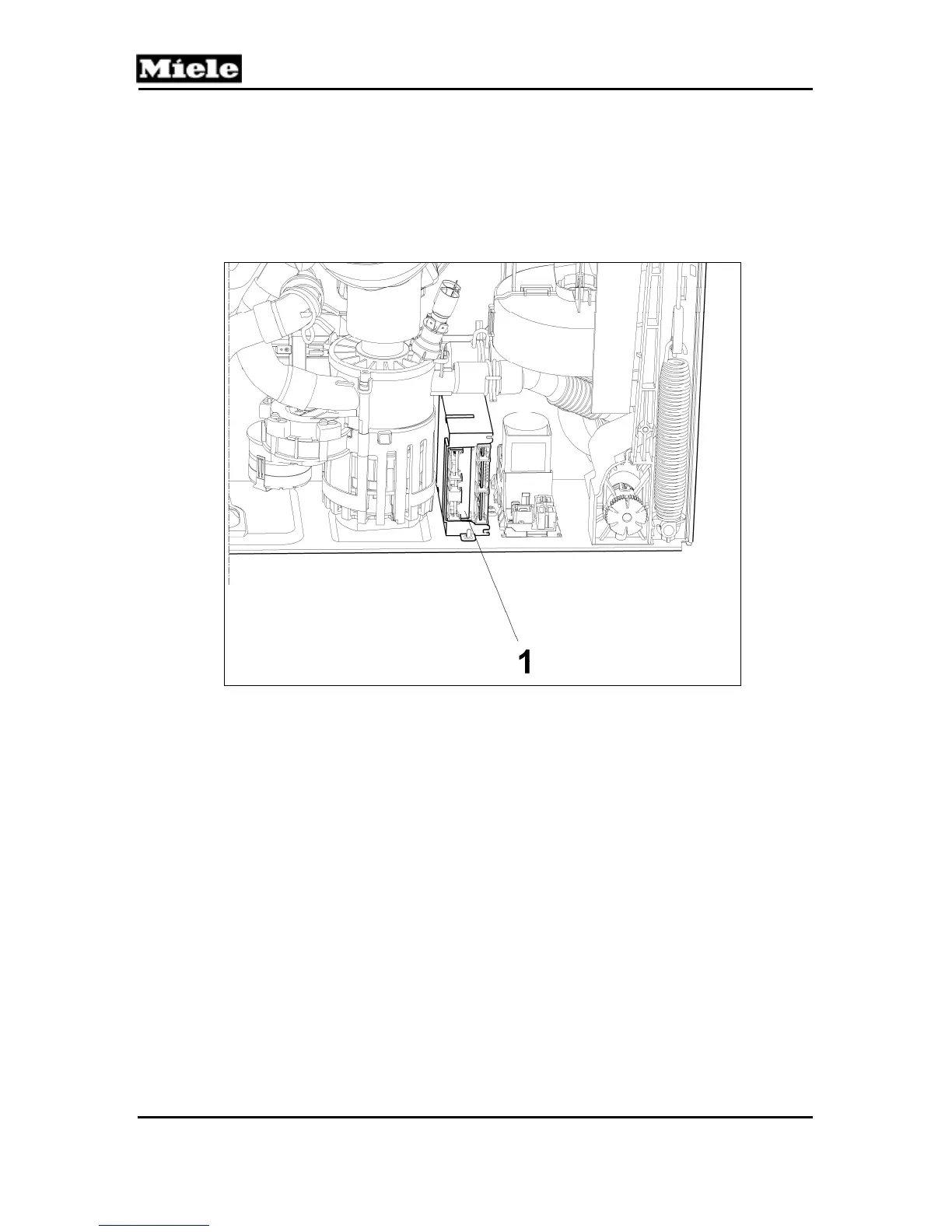

Figure 040-8: BrilliantLight Control Module
