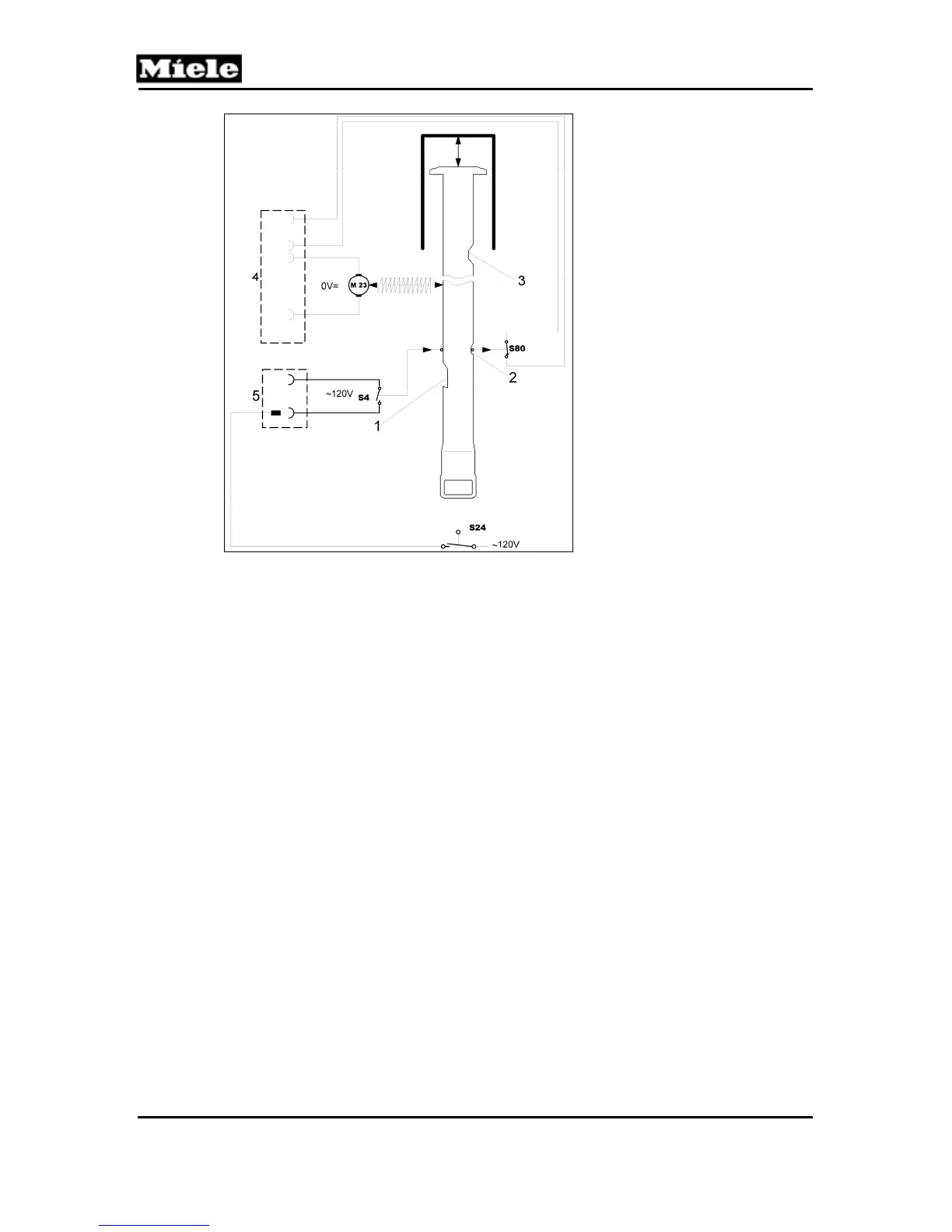

Figure 020-7: Door Lock Latch, Position 2
Position 3 - Drying, latch completely extended, “Drying plus” position:
After the end of the wash sequence, the latch extends by approximately
3.5 inches (9 centimeters), but the door lock remains locked. See Figure 020-8.
1, 2, 3 Latch positions 1, 2, 3
4 Plug 2
5 Plug 1
S4 Door switch (120VAC), open
S80 Door movement switch (low
voltage), closed
S24 Door contact switch (120VAC),
open
M23 Door-locking motor (DC
motor); no voltage applied
