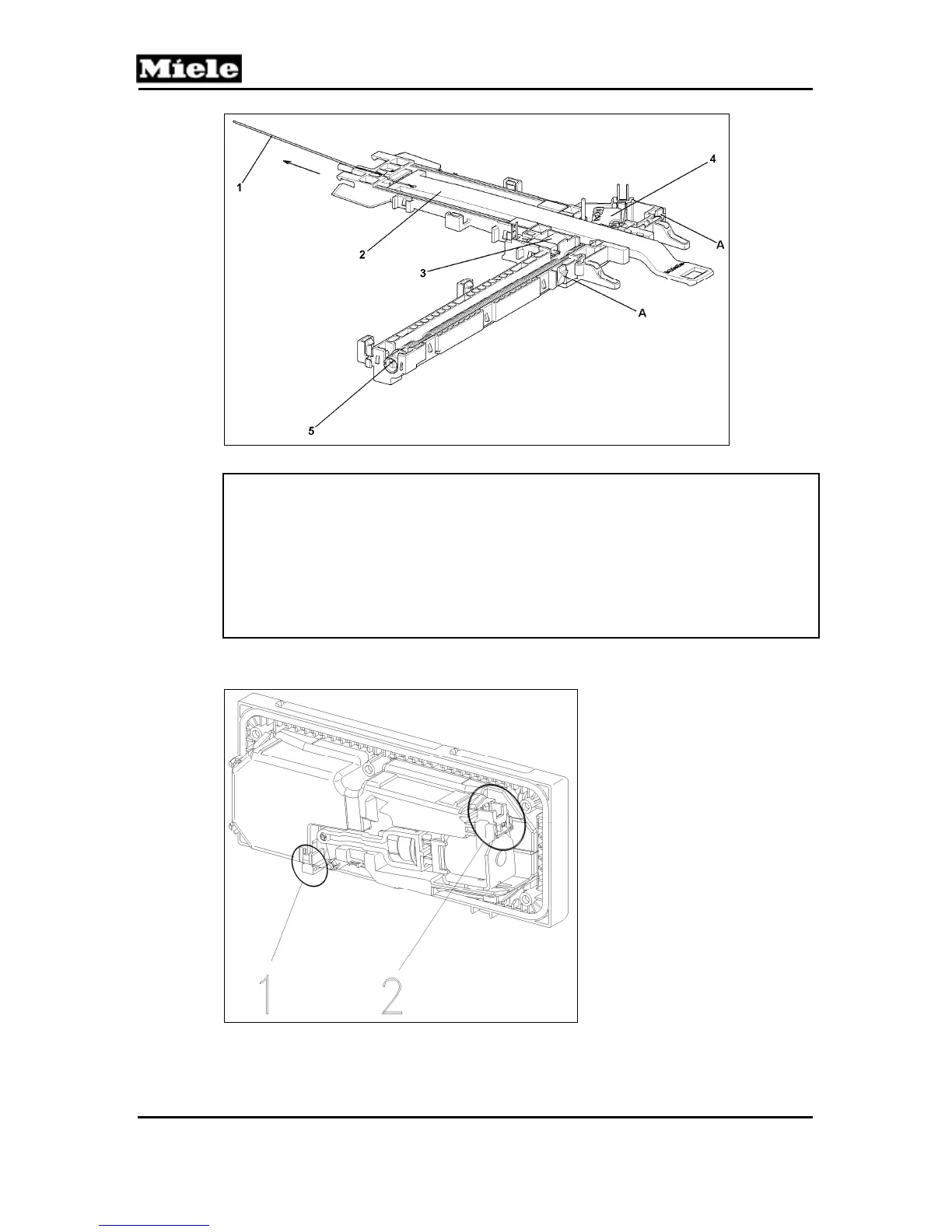

Miele G 5705 - Combination Dispenser; Figure 020-11: Door Lock Latch Assembly (Mechanical Version); Figure 020-12: Combination Dispenser

Technical Information
48
G 5xxx
Figure 020-11: Door Lock Latch Assembly (Mechanical Version)
Note:
The Drying Plus feature can be deactivated by the customer, if desired.
Drying Plus is inoperative in the following programs:
 Rinse & Hold
 Express
 Glassware warm
 Glassware cold
2.5 Combination Dispenser
Figure 020-12: Combination Dispenser
1 Bowden cable
2 Locking latch
3 Electromechanical
unlocking mechanism
4 Switch
5 Spring
1 Reed switch
2 Solenoid
