Miele G 5705 - Figure 020-18: Automatic Door Opener, Viewed from Underside

Technical Information
56
G 5xxx

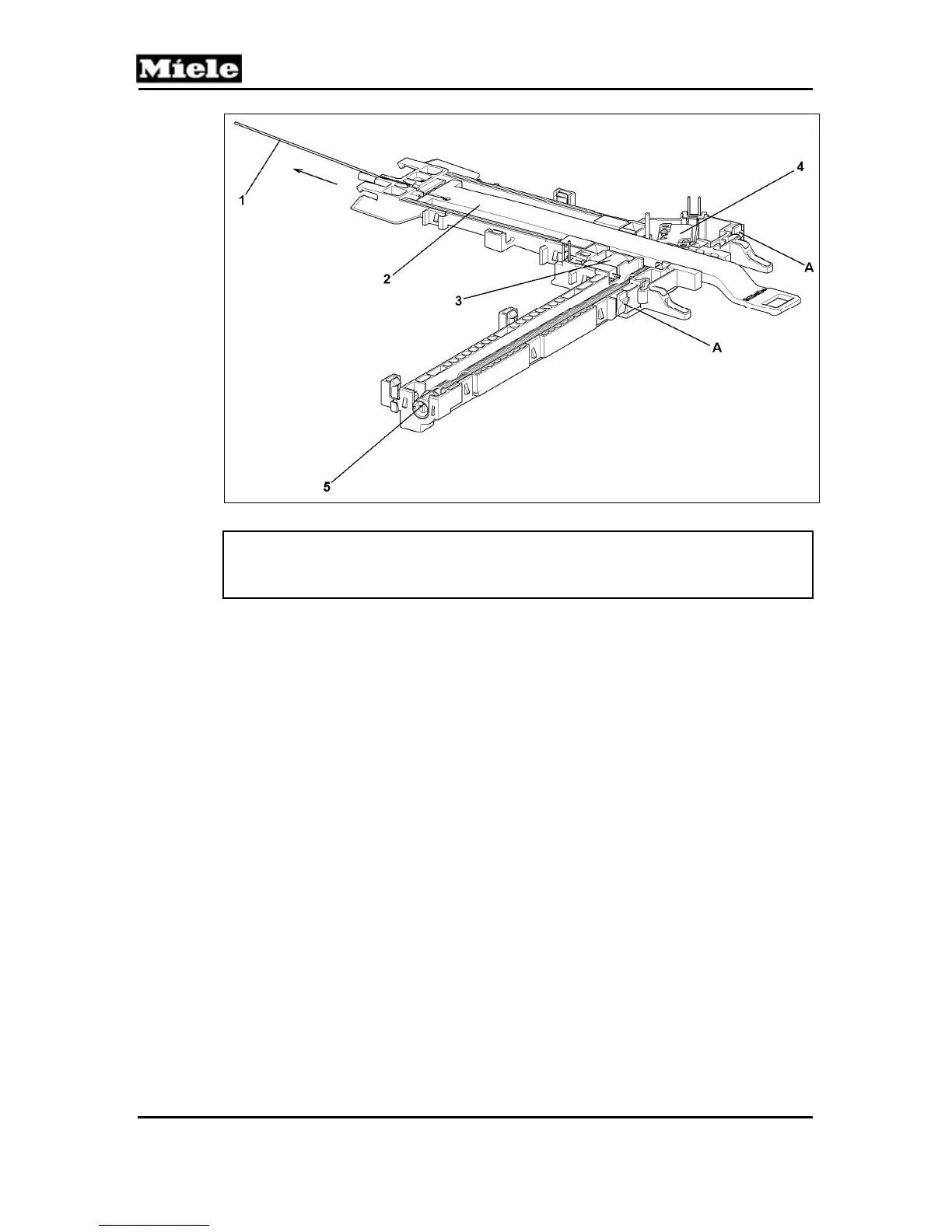

Figure 020-18: Automatic Door Opener, Viewed from Underside
Note:
When re-installing the Bowden cable, make sure that it is laid cleanly behind
the water diverter.
Drive:
1. Remove the left side panel; see Section 010-4.1.
2. Close the door.
3. Pull the Bowden cable protective sleeve (Figure 020-19, Item 1) out of the
drive assembly in the direction of the arrow.
4. Release the Bowden cable (Figure 020-19, Item 2).
5. Unhook the door cord (Figure 020-19, Item 3), if applicable.
6. Disconnect the electrical connections from the lighting microswitch, if
applicable (not shown).
7. Remove the retaining T20 screw (Figure 020-19, Item 4).
8. Unclip (Figure 020-19, Items 5 and 6) and remove the drive assembly
from the appliance.
