Miele G 5705 - G 5505;G 5605;G 5705 Component Layout

Technical Information
25
G 5xxx
3.3 G 5505, G 5605, G 5705 (Dimension/Dimension Plus with
Touchtronic and Display)

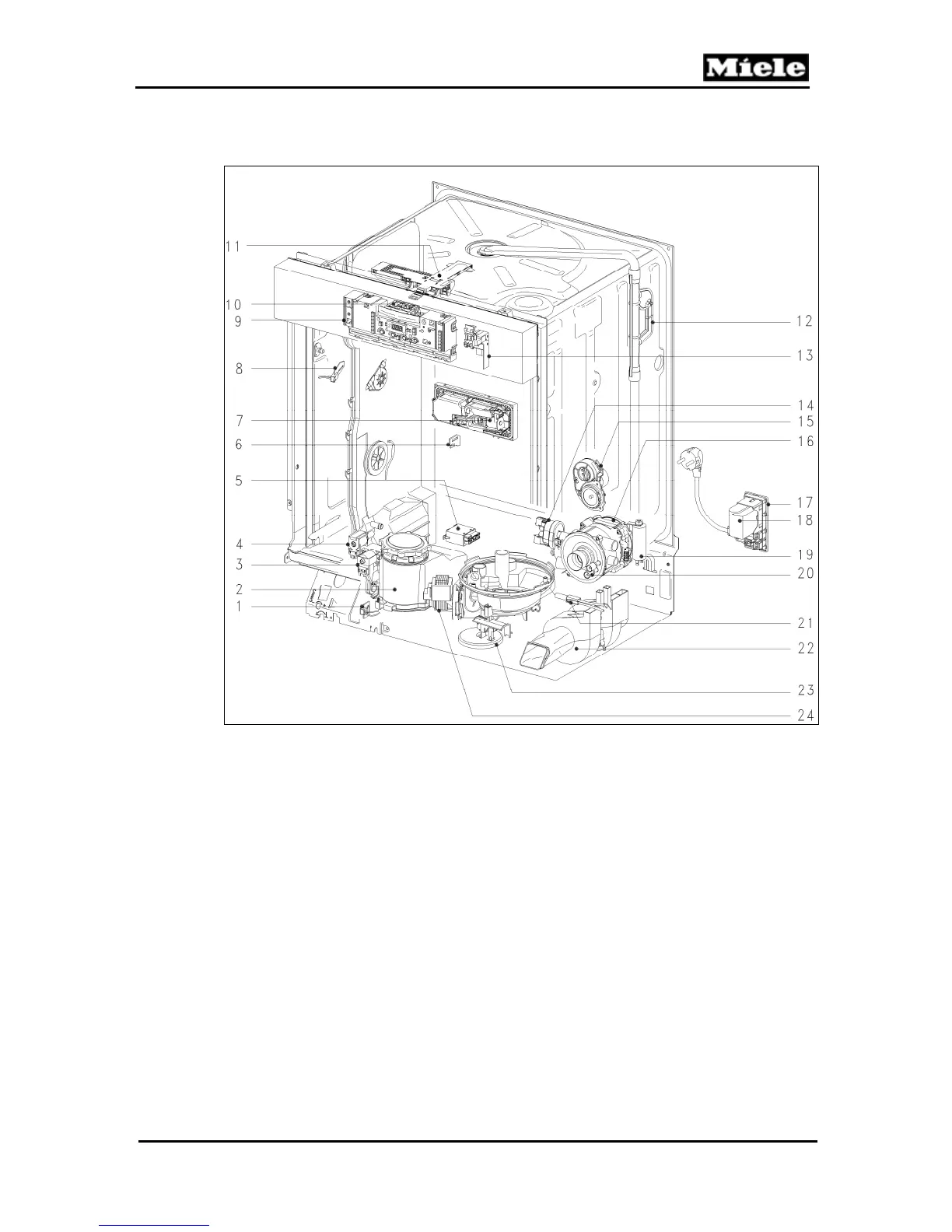

Figure D-8: G 5505, G 5605, G 5705 Component Layout
1
Salt float switch, B8/2
14
Heater pressure switch, B1/13
2
Salt reservoir
15
Slide shutter, M24 and B3/12
3
Reactivation solenoid, Y38
16
Circulation pump (MPEW or MPPW), M6
4
Wash-water hardness solenoid, Y5
17
Terminal block, X3/1
5
Heater relay, K1/1
18
Interference suppression, Z1 or Z2
6
Rinse aid float switch, B8/1
19
Circulation pump capacitor (MPEW
7
Combination dispenser solenoid, Y50 only), C6
8
Flow meter, B3/4
20
Heater, R1
9
Electronic, 1N1
21
Temperature sensor (NTC), R30
10
Door contact switch, S24
22
Fan, M2
11
Automatic door opener, A2 (G 5705 only)
23
Overflow float switch, B8/3
12
Turbidity sensor, B3/10
24
Drain pump, M8
13
Main switch, S2
Not shown
Inlet valve, Y63
(in base of appliance)
