Guide to the machine
9

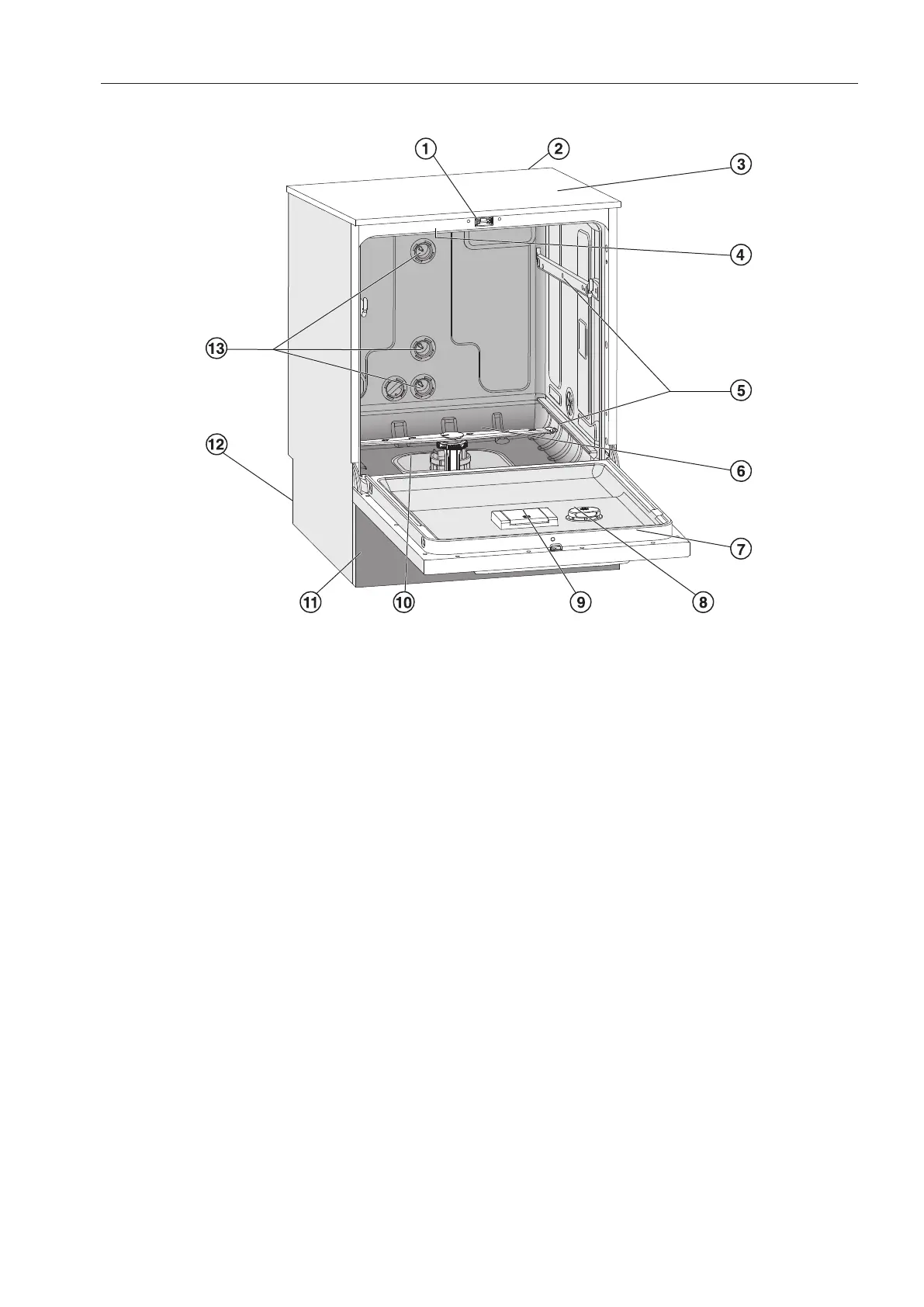

Overview
a
Comfort door locking mechanism
b
Module slot for a communication module
(Back, top right)
c
Test point for validation
(Top, front right; only visible with lid
removed)
d
Upper machine spray arm
e
Rails for baskets and wash carts
f
Lower machine spray arm
g
Data plate
h
Rinse aid reservoir
i
Salt reservoir
j
Filter combination
k
Toe kick panel with service flap
l
On the back:
– Second data plate
– Electrical and plumbing connections
– Suction lance(s) for external supply
containers
– Connections for external dispensing
modules (optional DOS modules)
m
Connection point for wash carts and
baskets
