Product Information
4

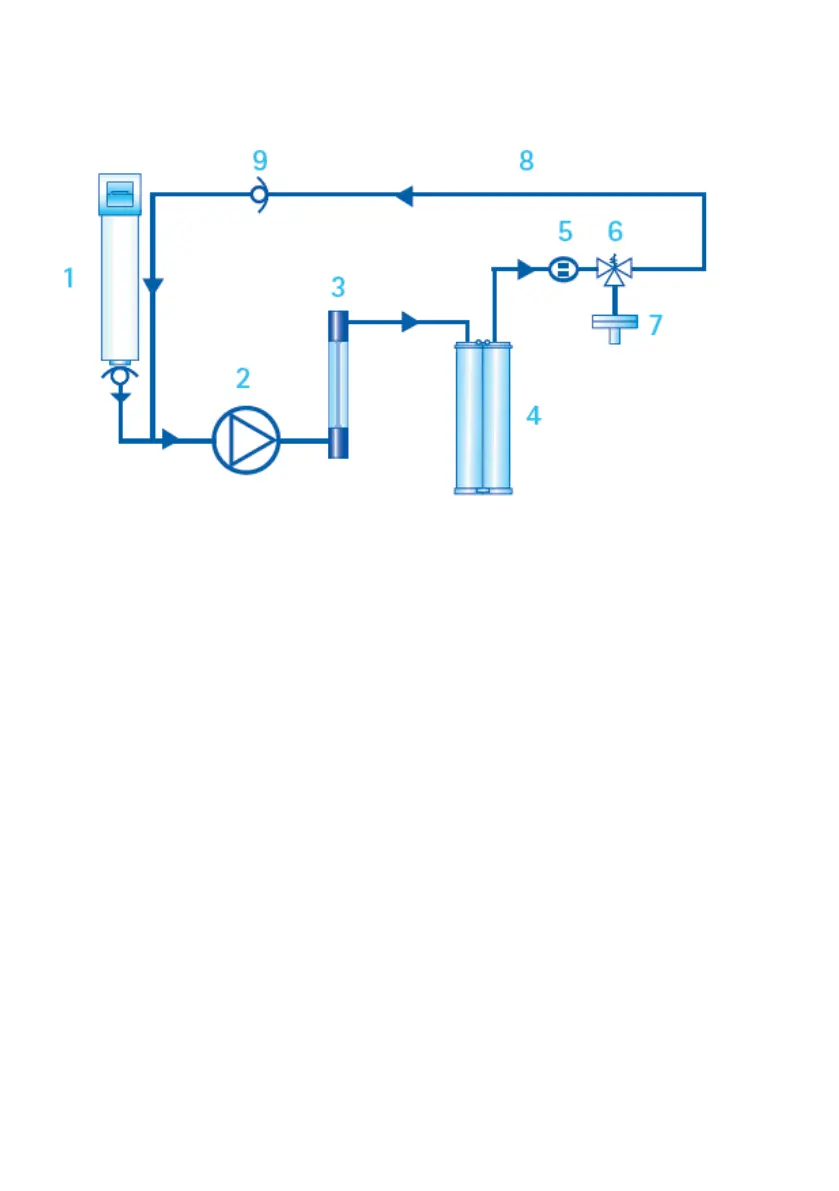

Schematic of Main Components
1 2 Litre Tank 5 Product Resistivity Cell & Thermistor
2 Distribution Pump 6 Point-of-Use (POU) Solenoid Valve
3 UV Lamp 185 nm (UV System) 7 Final Filter
4 SimpliPak 1, 2 or 3 Cartridge 8 Recirculation Loop
Operating principle
The Simplicity Water Purification System is fed with pretreated water (Elix
system, RO, distilled or DI water)
through an internal tank.
When Product Water is being dispensed, the Distribution Pump turns on. The feedwater (pretreated) water is then
pumped into the UV Lamp (UV System only). The UV Lamp emits light at 185 nm and 254 nm. It is used to reduce
levels of organic molecules in the water. The UV Lamp is a consumable device that needs to be periodically
replaced during the maintenance of the system. The water is then sent to the SimpliPak cartridge to deionize the
water. There are three types of SimpliPak cartridges. The SimpliPak 1 cartridge is used for Elix system, RO or
distilled feedwater. The SimpliPak 2 cartridge is used for pretreated water from clean DI (particulate-free). The
SimpliPak 3 cartridge is used for pretreated water from dirty DI (non particulate-free). The SimpliPak cartridge is a
consumable device that needs to be periodically replaced during the maintenance of the system.
The Final Filter is a membrane based filter that removes all particles and bacteria with a size greater than the
filter pore size. The Final Filter is a consumable device.
