RACK MOUNT

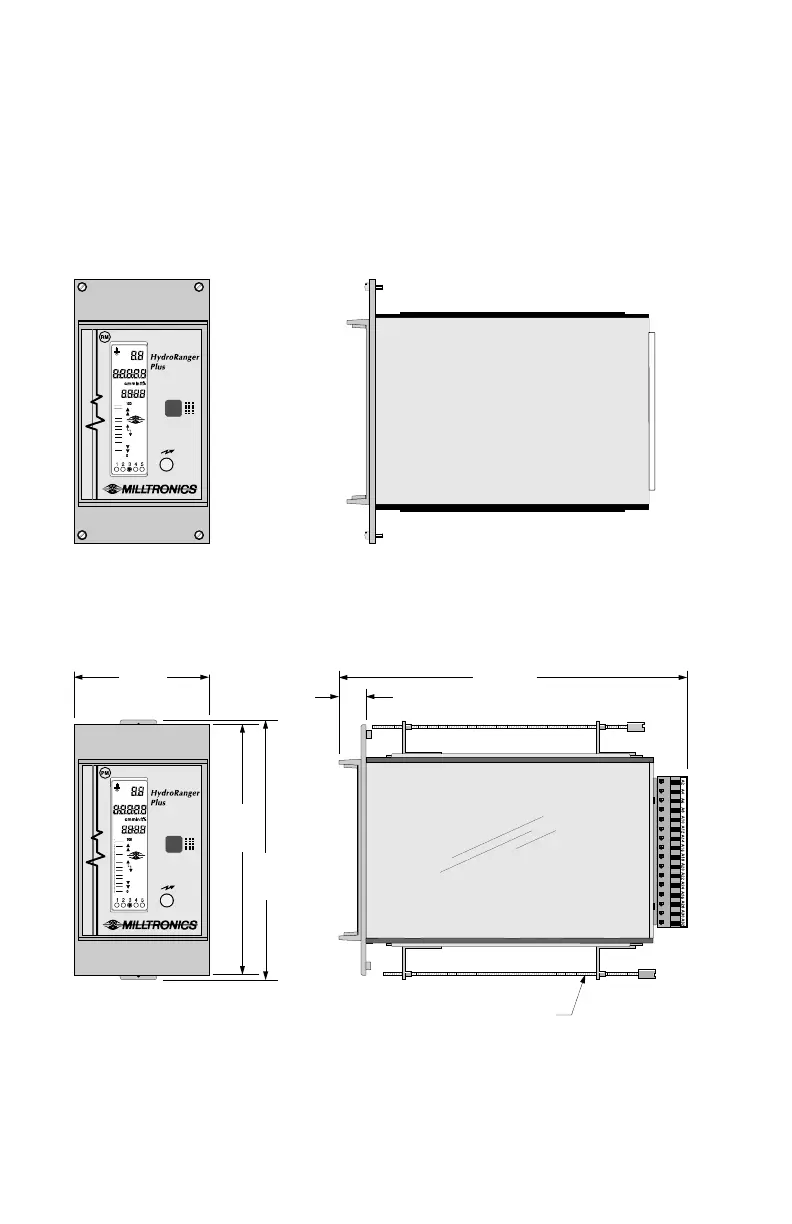

The HYDRO+ rack mount version is a standard DIN 3U/14 HP, 4 rail plug-in unit, for a
standard 84 HP deep sub-rack.
201 mm
(7.9")
72 mm
(2.9")
150 mm
(5.9")
144 mm
(5.7")
slip on mounting bracket top & bottom
screws to be tightened to no more than
1 inch / lb. torque.
16 mm
(0.6")
PANEL MOUNT
