PUMPED VOLUME TOTAL

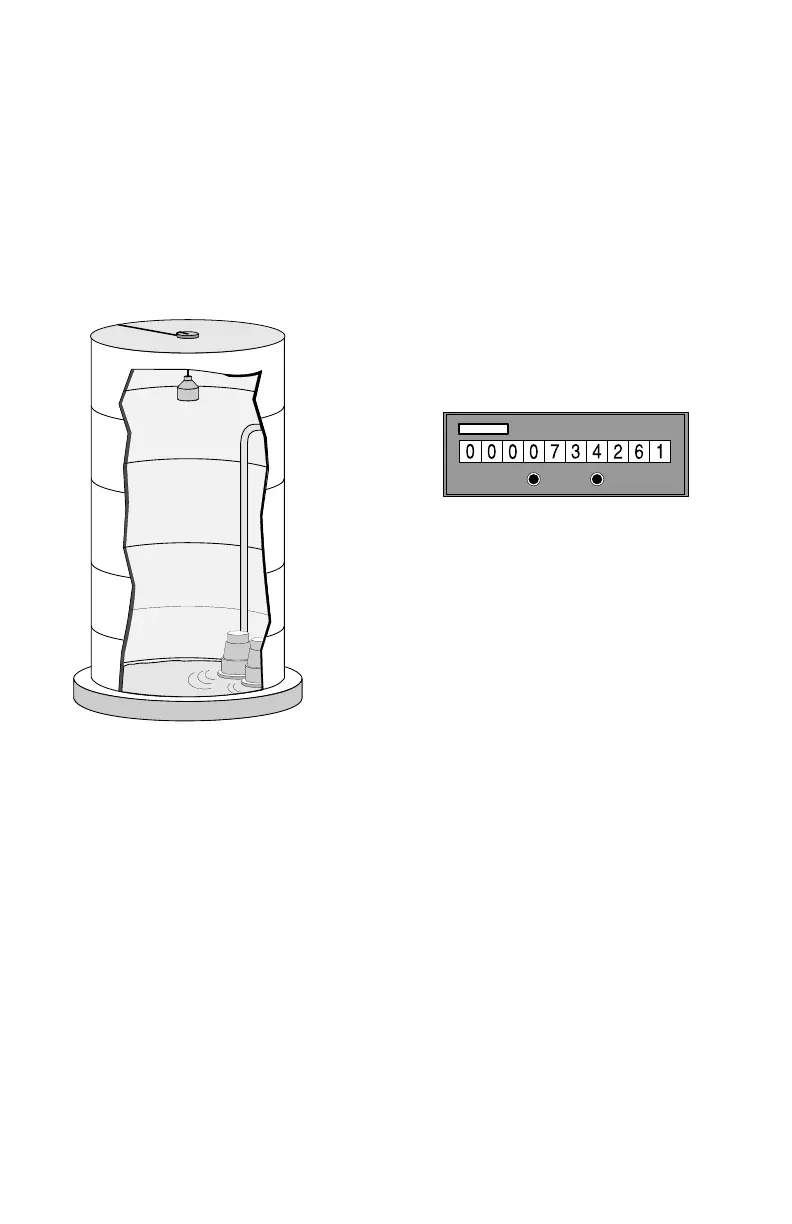

Sometimes, an indication of the total liquid volume pumped from a wet well or into a
reservoir is required.
The HYDRO+ provides total volume pumped calculation with only minimal application
programming. Ensure Operation is set for "Pumped Total" (P001 = 7) and the Wet
Well or Reservoir Control and Volume Calculation application programming is
complete before proceeding.
RELAY INTERCONNECTION
The relay contact illustrations adjacent to the HYDRO+ relay terminals are shown in
the power off, de-energized, alarm on, control off condition.
Connect the HYDRO+ relays as follows:
RL1 As indicated by the alarm/control application example used.
RL2 As indicated by the alarm/control application example used.
RL3 As indicated by the alarm/control application example used.
RL4 As indicated by the alarm/control application example used.
RL5 To the remote totalizer (if used)
(not supplied)
