PROGRAMMER

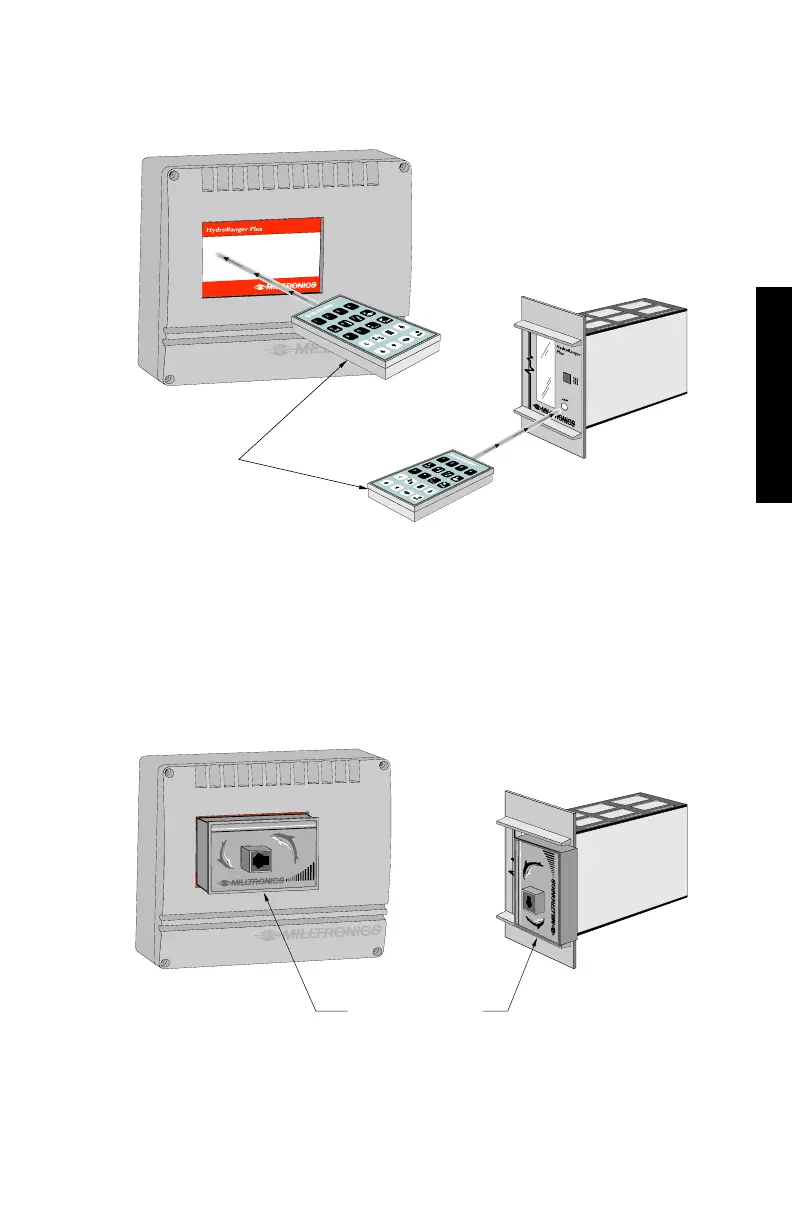

The hand held programmer is aimed at the receiver as depicted, while the
keys are pressed.
COMVERTER (optional)
The ComVerter is pressed into the docking area as depicted and held in place
by its pressure tabs.
Refer to Dolphin instruction manual, for interconnection details.
Programmer
Wall Mount
Rack or Panel Mount
ComVerter
Wall Mount
Rack or Panel Mount
INSTALLATION
PL-507 17
