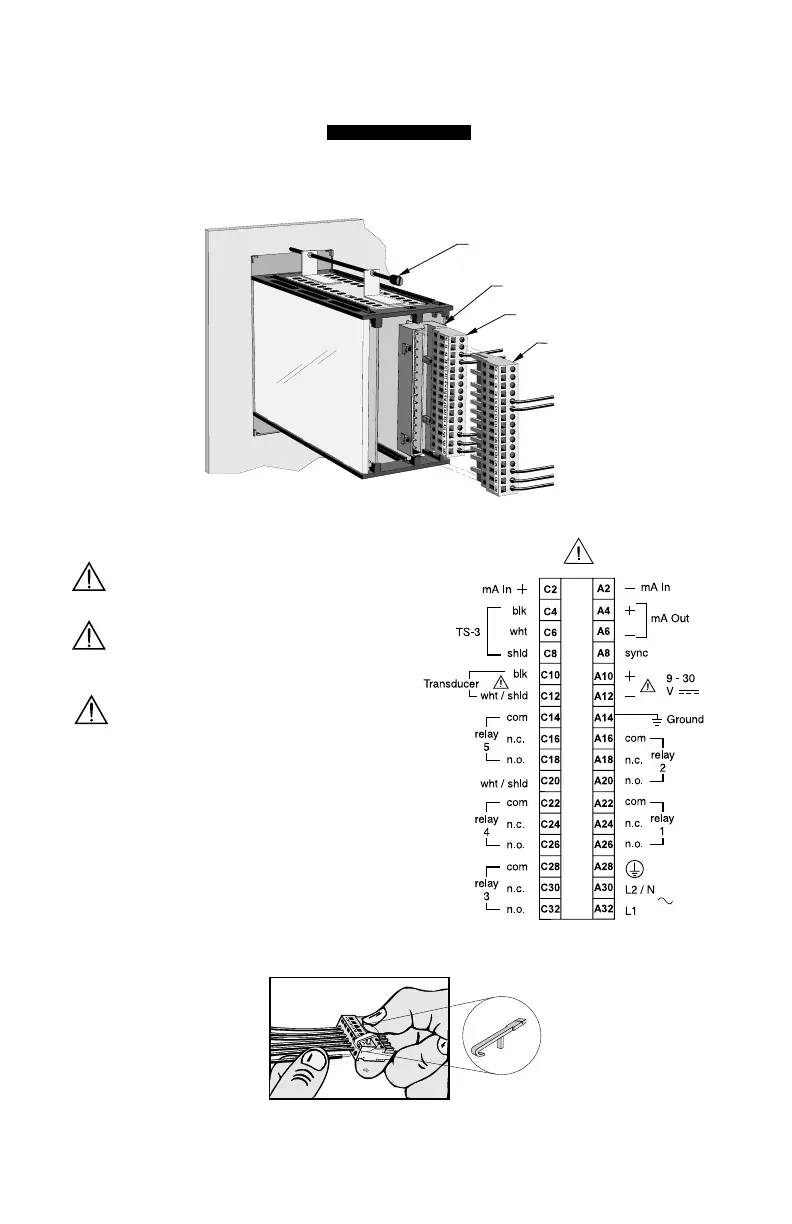

3. Tighten mounting bracket clamping screw (top & bottom)
4. Plug terminal blocks ‘A’ and ‘C’ into corresponding connector sockets,
prewired by customer (refer to \ Rack and Panel Mount).
connector
terminal block ‘C’
clamping screw
Use the tool provided
to open terminals for
insertion of wires.
INTERCONNECTION
Hazardous voltage present on transducer
terminals during operation.
dc terminals shall be supplied
from an SELV source in
accordance with IEC 1010-1
Annex H.
All field wiring must have insulation
suitable for at least 250 V .
PL-507 16
