Milltronics HydroRanger Plus - PANEL MOUNT INSTALLATION

PANEL MOUNT

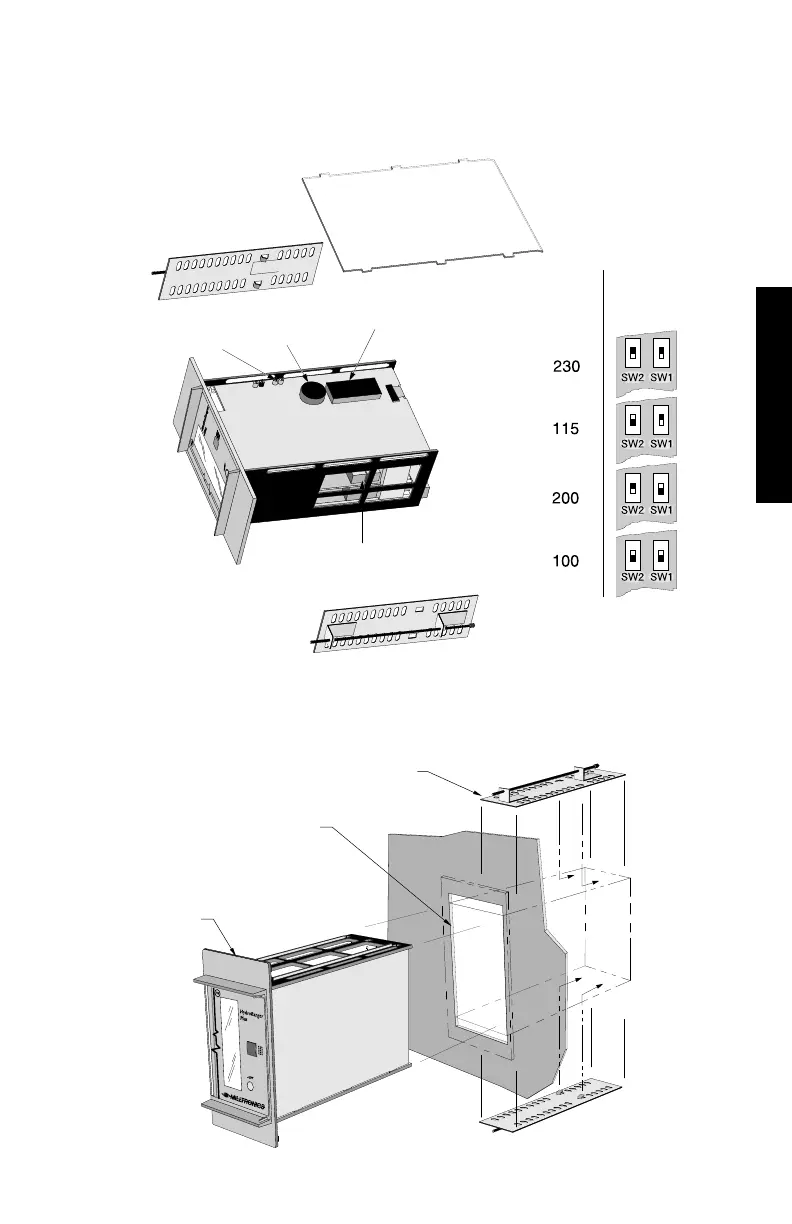

Voltage Selection
1. Set the voltage switches.
Installation
1. Slide the HYDRO+ through the panel cut-out.
2. Assemble mounting brackets to the HYDRO+ chassis by hooking them into
the top and bottom
mounting bracket
(top & bottom)
cut-out dimension
68 + 0.7 mm x 138 + 1.0 mm
(2.68 + 0.03" x 5.43 + 0.04")
DIN 43700
72 x 144
EPROM
clock module
scope
connections
Voltage
Selection
Switches
voltage
selection
switches
Supply
Voltage
(ac)
INSTALLATION
