VOLUME CALCULATION
Sometimes, an indication of the liquid volume contained within a vessel, or remaining
vessel capacity is required.
The HYDRO+ provides volume calculation with only minimal application programming.
Ensure Empty (P006) is set from the transducer face to the vessel bottom and Span
(P007) is set from the vessel bottom to the vessel top.
RELAY INTERCONNECTION
Connect the HYDRO+ relays as indicated by the alarm/control example used.
Ensure the surface monitored is controlled from coming within 0.33 m (1.1 ft) of the
transducer face, (see INSTALLATION Transducer).
Volume calculation does not alter relay programming.

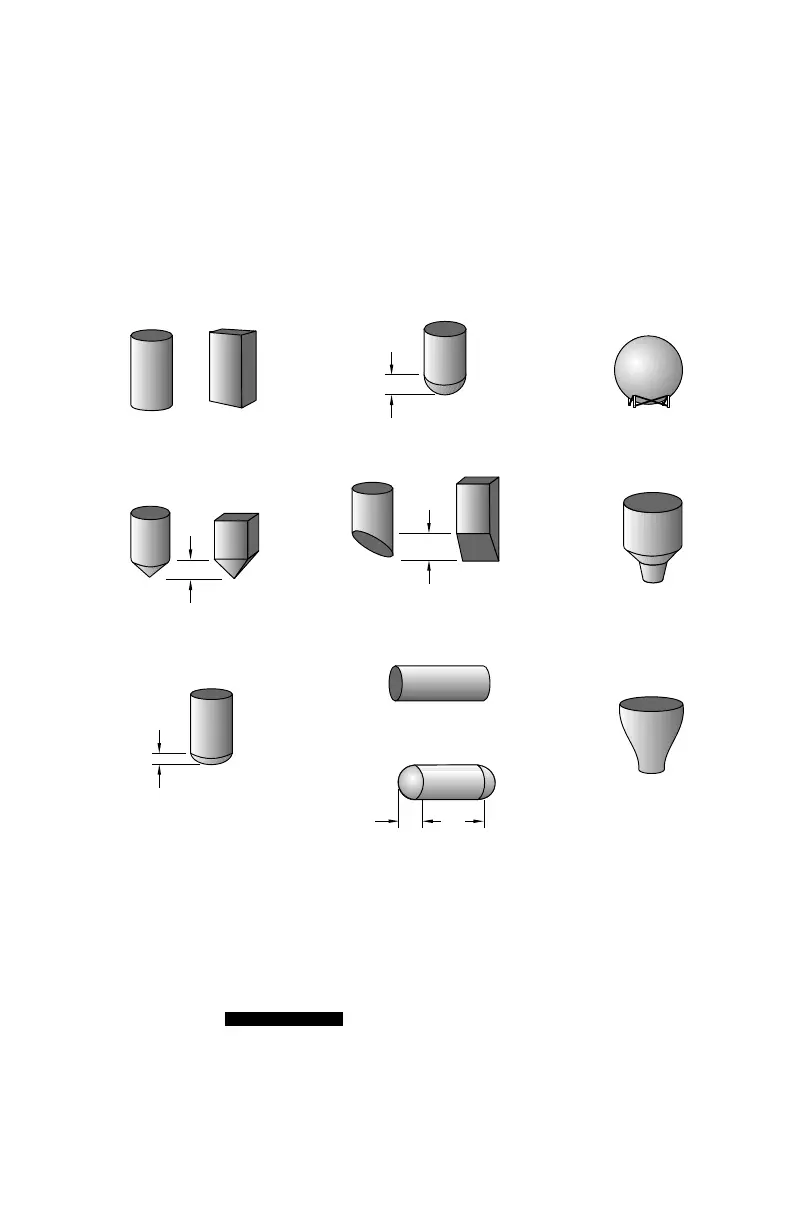

1 =
2 =
4 =
8 =
5 =
9 =
parabola bottom
cone / pyramid bottom
flat level bottom
half sphere bottom
flat sloped bottom
sphere
flat ends
Universal
Curved
6 =
parabola ends
A
3 =
A
LA
7 =
or
A
or
A
INSTALLATION
PL-507 54
