KEYPAD

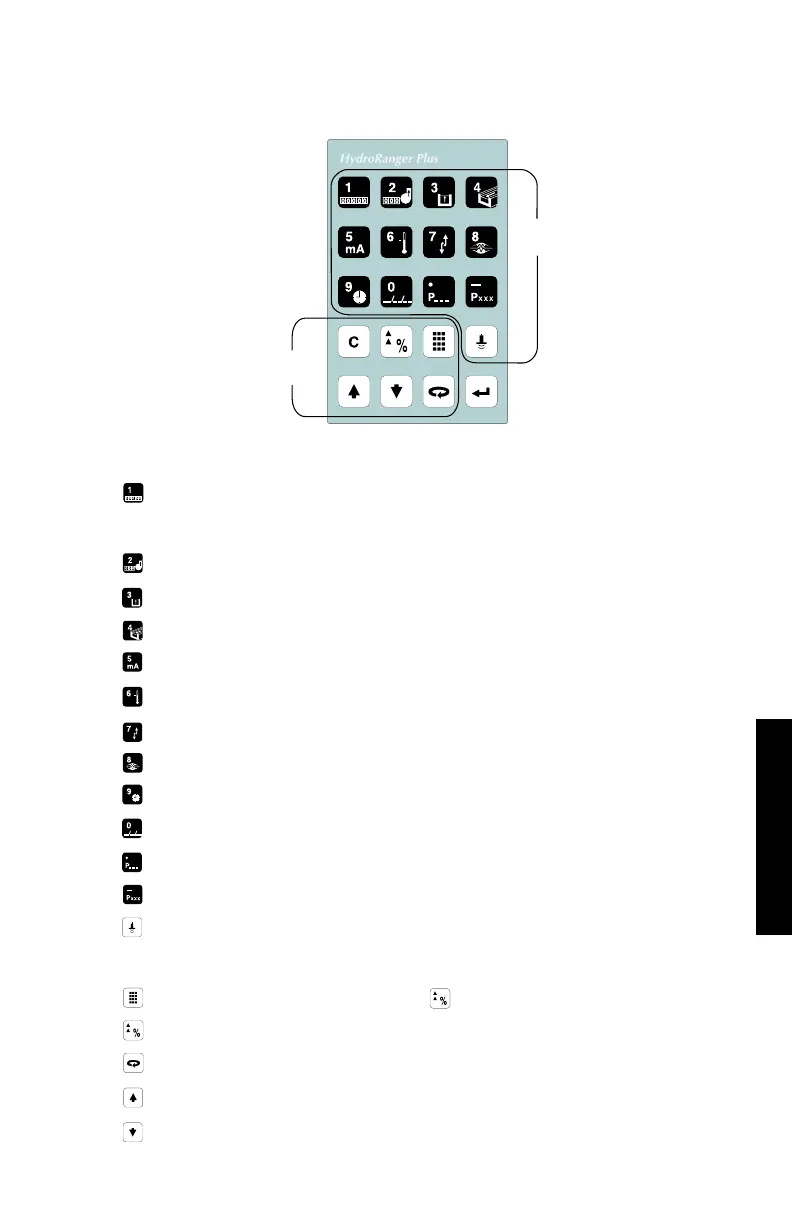

In the RUN mode, the following programmer keys perform the identified functions.
KEY READING
"8 Digit Totalizer" ("OCM" or "PT" Operation, P001 = 6 or 7)
AUXILIARY READINGS
"Pump Running Time" (key in Pump Number, hold for Starts)
"Head" (OCM Operation, P001 = 6)
"Flow based on Head" (OCM Operation, P001 = 6)
"mA Output Value"
"Temperature" (air in °C)
"Rate of Change" (in Units/minute)
"Failsafe Time Left" (in percent)
"Time" (HH:MM, 24 hour format)
"Date" (MM:DD, of the current year)
"Parameter Value" (key in Parameter Number)
"Material Level" (may be altered via P731)
"Distance" (surface to transducer face)
FUNCTION
initiate program mode access (see )
toggle between Units and % (complete program mode access)
stop/start the Point Number auto display scroll
select the next Point Number (stop the display scroll)
select the previous Point Number (stop the display scroll)
Function Keys
OPERATION
PL-507 35
