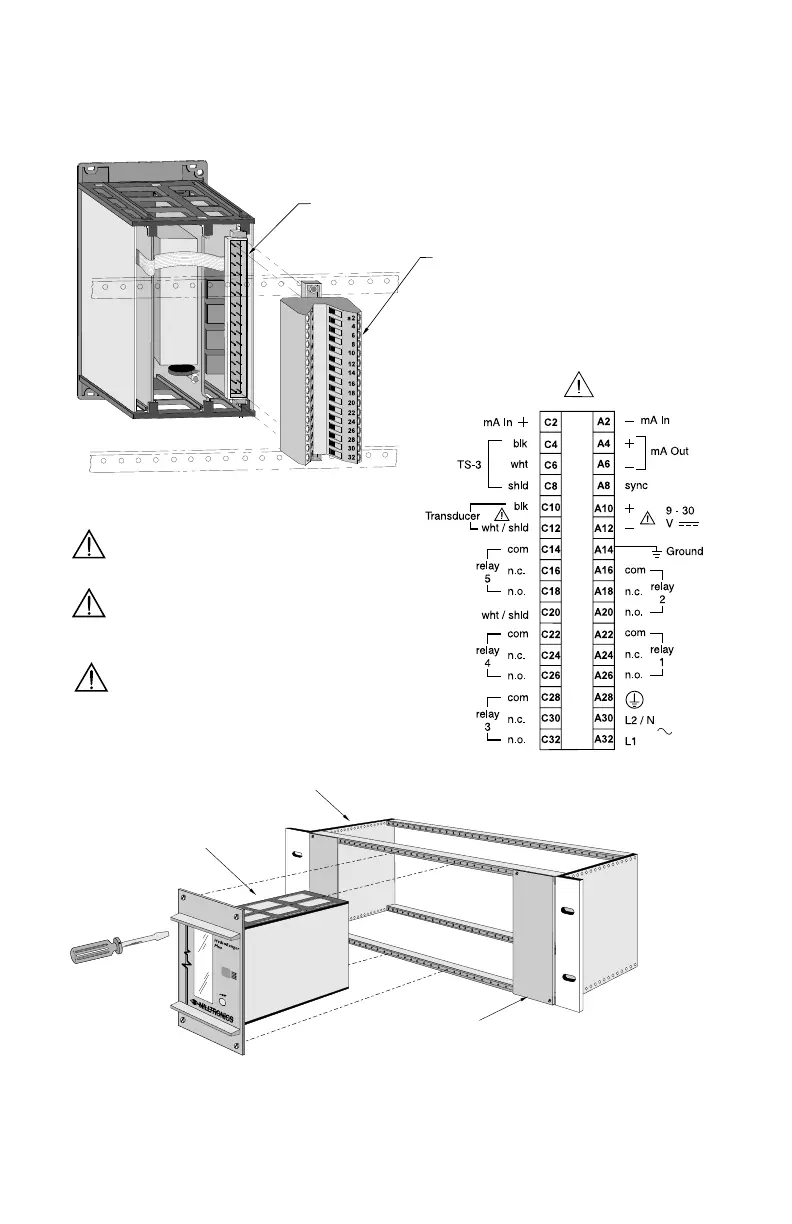

Installation
1. Slide the Hydro+ into the sub-rack, aligning the connector with the
rail mounted terminal block.
2. Push the Hydro+ into the sub-rack until the HYDRO+ front
cover is snug to the front rails.
3. Tighten the 4 captivated screws to secure the HYDRO+ in place.
84 HP (19") sub-rack
HYDRO+
DIN 3U/14 HP
plug-in unit
blanking panels must
cover any unused slots
connector,
2 row form D male 32 way, per DIN41612
terminal block,
2 row form D female 32 way,
per DIN41612
Hazardous voltage present on transducer
terminals during operation.
dc terminals shall be supplied
from an SELV sourcein
accordance with IEC 1010-1
Annex H.
All field wiring must have insulation
suitable for at least 250 V .
PL-507 14
