Milltronics HydroRanger Plus - Page 106

P601 (G) FLOW EXPONENT
Exponent PMD (P600 = 1) where Q = KH
X
Enter the exponent specified by the PMD manufacturer ( preset 1.55 )
WEIRS

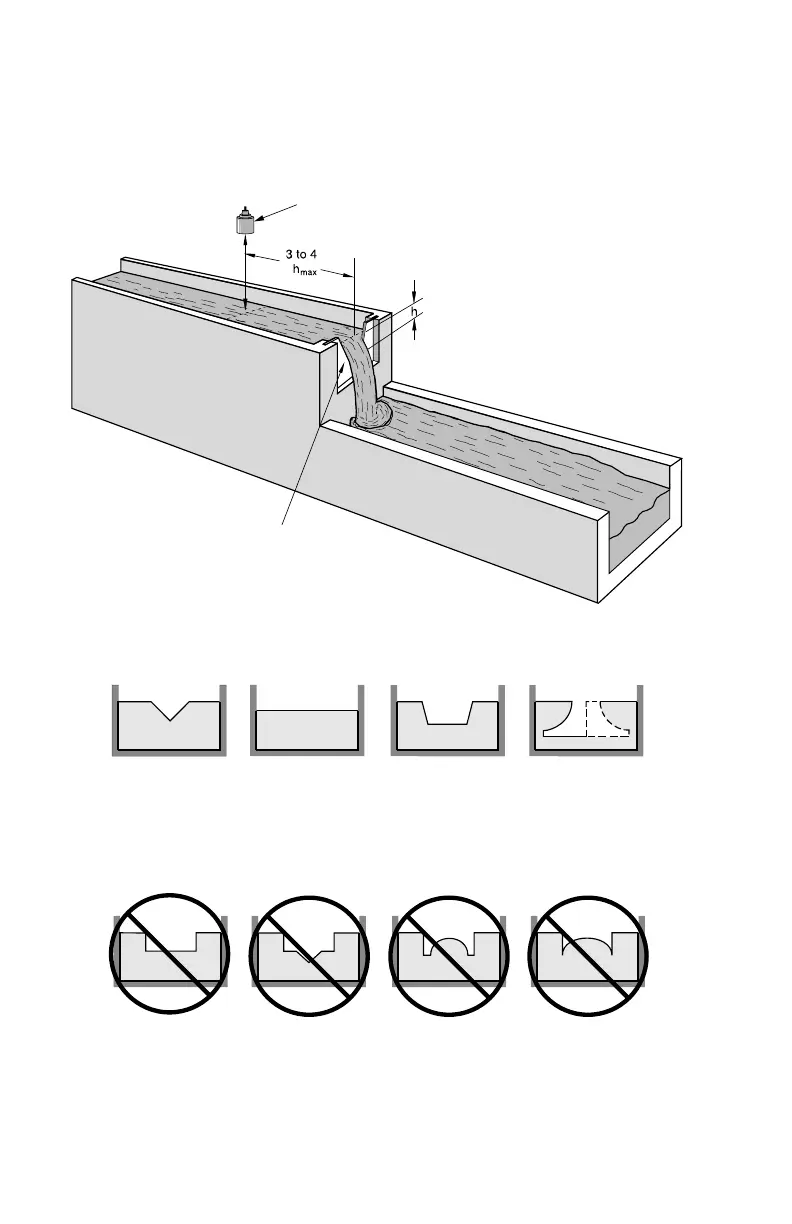

Applicable Weir Profiles
Non-Applicable Weir Profiles
Flows through these weirs may be measured using
the universal flow calculation P600 = 4 or 5.
transducer *
weir profile
* The transducer must be
above the maximum head
by at least the blanking
value, P800.
compound approximate
exponential
Poebingcontracted
rectangular
suppressed
rectangular
sutro or
proportional
cipolleti or
trapezoidal
V -notch or
triangular
PL-507 106
