Installation
The HYDRO+ wall mount version enclosure design permits quick electronic package
removal for enclosure drilling and mounting.
1. Remove the HYDRO+ enclosure lid (4 captivated screws).

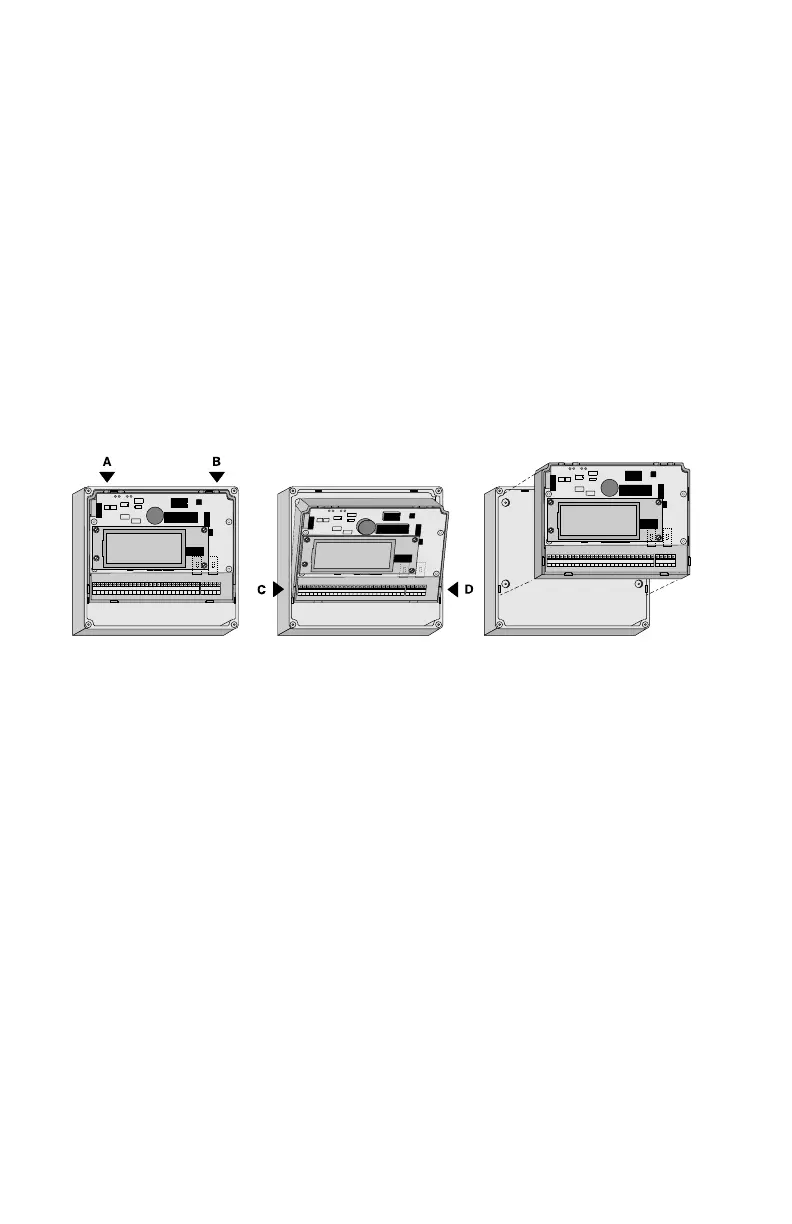

2. With the enclosure upright, press down enclosure TABS A and B.
3. Push in on TABS C and D to release the electronics package.
4. Drill sufficient holes for cable / conduit entry in the enclosure bottom.
5. Fasten the enclosure to the mounting surface, (4 predrilled screw holes).
6. Attach the conduit / cable hubs to the enclosure. (Do not apply undue force.)
7. Snap the electronics package back into the enclosure.
PL-507 12
