P051 MAX VOLUME
For Readings in volumetric units (rather than percent), enter the vessel
volume
between Empty (P006) and Span (P007).
e.g. 1) If volume = 3650 m
3
, enter 3650.
2) If volume = 267500 gallons, enter 267.5 (1000’s of gallons).
values: 0.000 to 9999
P052 TANK DIMENSION A
Enter the height of the tank bottom if P050 = 2,3,4, or 5, or the length of
one end section of the tank if P050 = 7, in Units (P005).
values: 0.000 to 9999
P053 TANK DIMENSION L
Enter the tank length (excluding both end sections) if P050 = 7.
values: 0.000 to 9999
P054 LEVEL BREAKPOINTS (Universal Volume Calculation)
Enter the level breakpoints
*
(where volume is known) if P050 = 9 or 10.
values: 0.000 to 9999
P055 BREAKPOINT VOLUMES (Universal Volume Calculation)
Enter the volume
*
corresponding to each Level Breakpoint entered.
values: 0.000 to 9999
*

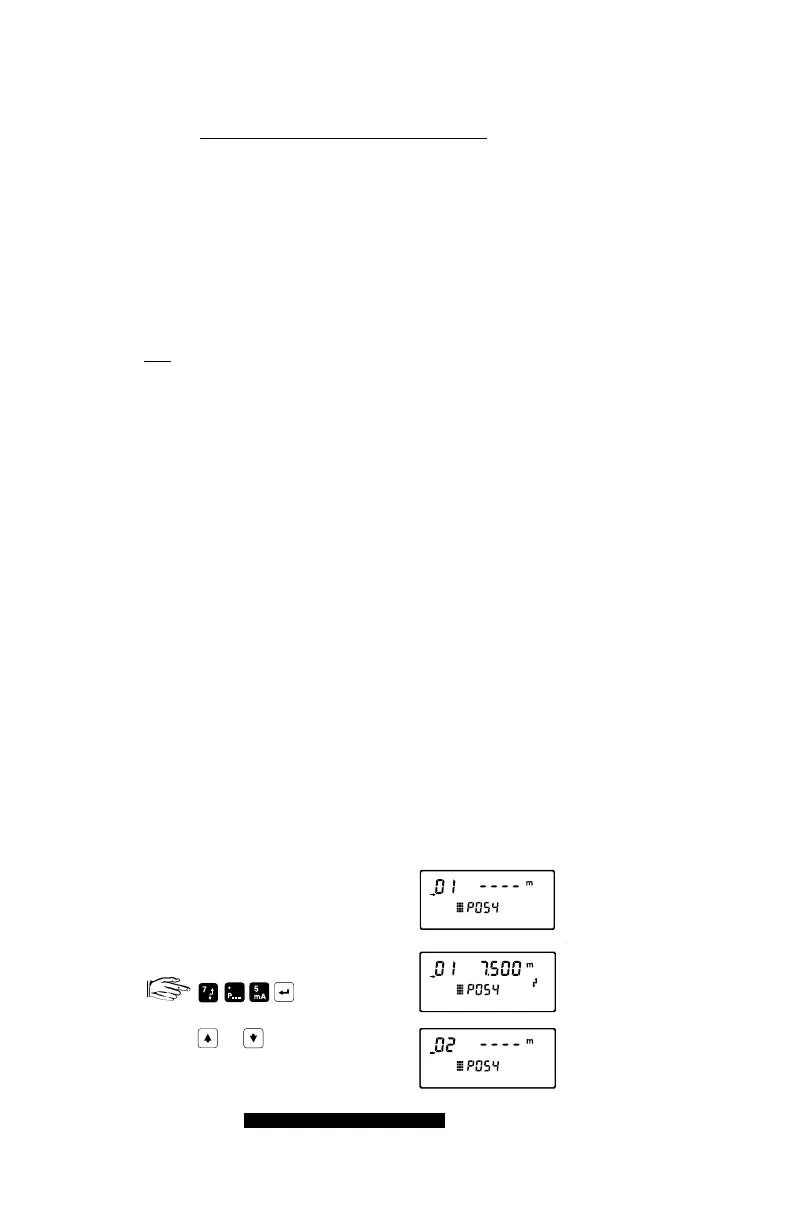

To enter a Level Breakpoint or Breakpoint Volume...
Enter the desired value.
Scroll ( or ) or direct access
the desired Breakpoint.
TECHNICAL REFERENCE
Refer to Volume Calculation
for breakpoint value selection assistance.
e.g. level breakpoint,
breakpoint 1,
value blank
e.g. 7.5 m
e.g. breakpoint 2
PL-507 66
