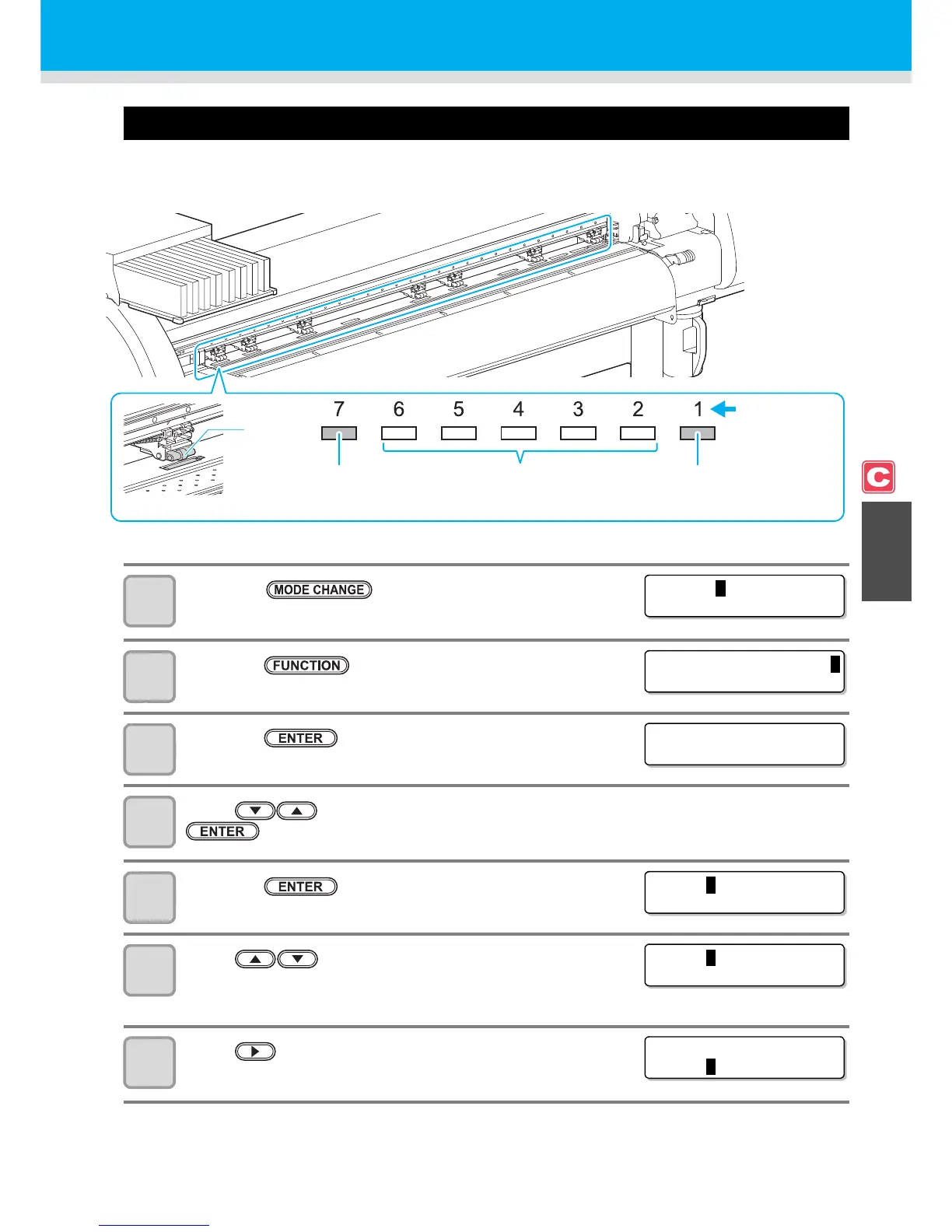

Setting the Pinch Rollers
4
Extended Functions – Cutting –
Setting for the Pinch Rollers
This section describes the setting procedure for CJV30-160.
For CJV30-130/100/60, the number of pinch rollers set in Step 10 varies.
1
Press the key in LOCAL to select cutting
mode.
2
Press the key.
3
Press the key.
4
Press to select a tool condition (CUT1 to CUT3, HALF, PEN) and press the
key.
5
Press the key twice.
6
Press to set the pressure for the pinch
rollers at both ends of the medium.
• Set value: HIGH/MID./LOW
7
Press to move the cursor to the
middle pinch roller setting.
End pinch roller
(left end)
End pinch roller
(right end)
Middle pinch rollers
• The figure above shows CJV30-160.
Pinch
Roller
Pinch
Roller No.
<LOCAL . C >[#01]
CUT 1 ( 3 0 / 6 0 / 0 . 3 0 )
FUNCT I ON C
SETUP <ENT>
SETUP
SELECT : CUT1
ENDS : H IGH [H_____H]
INNER:OFF No.7-1
ENDS : M ID. [H_____H]
INNER:OFF No.7-1
ENDS :MID. [H_____H]
INNER:
OFF No . 7 - 1
