Assembly Installation Guide
2 - 14 046-001141-00 A5/A3â„¢ Service Manual

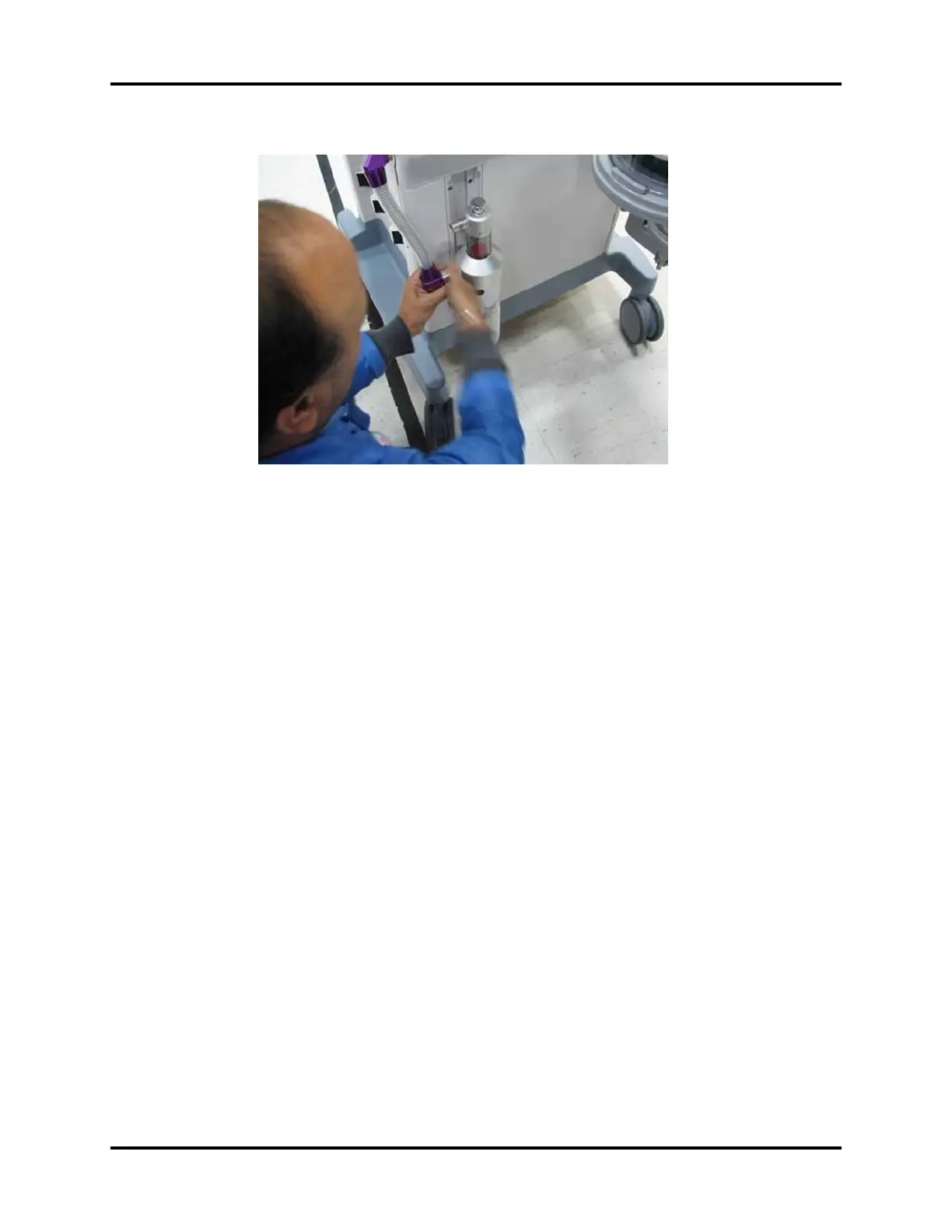

FIGURE 2-22
26. Open the top drawer and check that it contains the following contents:
• Auxiliary O2/Air Reference Card (PN: 0046-002591-00)
• Preoperative Checkout List (PN: 046-002590-00)
• Exhaust Emission Pipe (PN: 115-008426-00)
• Inspiratory Flow Sensor & Expiratory Flow Sensor (PN: 115-008264-00)
• O2 Cable Assembly (PN: 115-006551-00) (Some unit may not include this assembly)
• Gas Cylinder Wrench (PN: 041-004480-00)
• Wired USB Mouse (PN: 0000-10-10751) (A3 only)
• Drawer Keys(PN: 034-000353-00)
• A Series Cleaning Quick Reference Card (PN: 046-009638-00)
To Next Page
