A5/A3â„¢ Service Manual 046-001141-00 2 - 13
Installation Guide Assembly

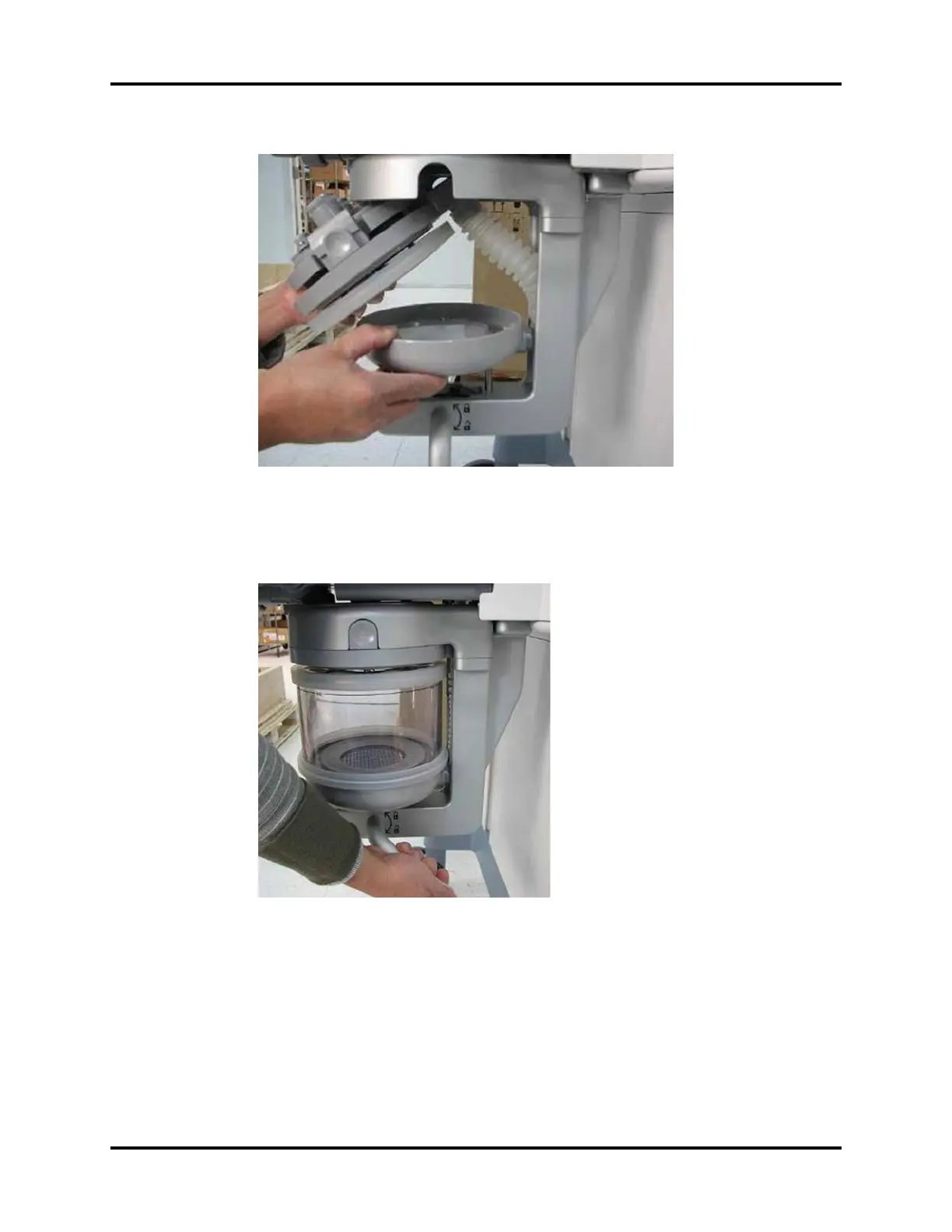

FIGURE 2-20
24. Add CO2 absorbent Pre-Pak or loose fill to the canister. Slide the canister into the Absorber
Assembly. Turn the locking lever 90° counter-clockwise to lock the canister in place.
FIGURE 2-21
25. Slide the Scavenger Assembly in the track on the lower left side (i.e., same side as the Breathing
Assembly) of the A5/A3 and tighten the thumbscrew on the Scavenger Assembly to lock it in
place. Install one side of the Scavenger Hose to the Scavenger Assembly and the other side of
the Hose to the A5/A3 as shown below.
NOTE: If a passive scavenger system was ordered with the unit, connect the
passive scavenger to the instead of the Scavenger Hose. Follow the
installation instructions that come with the passive scavenge.
