Assembly Installation Guide
2 - 12 046-001141-00 A5/A3™ Service Manual

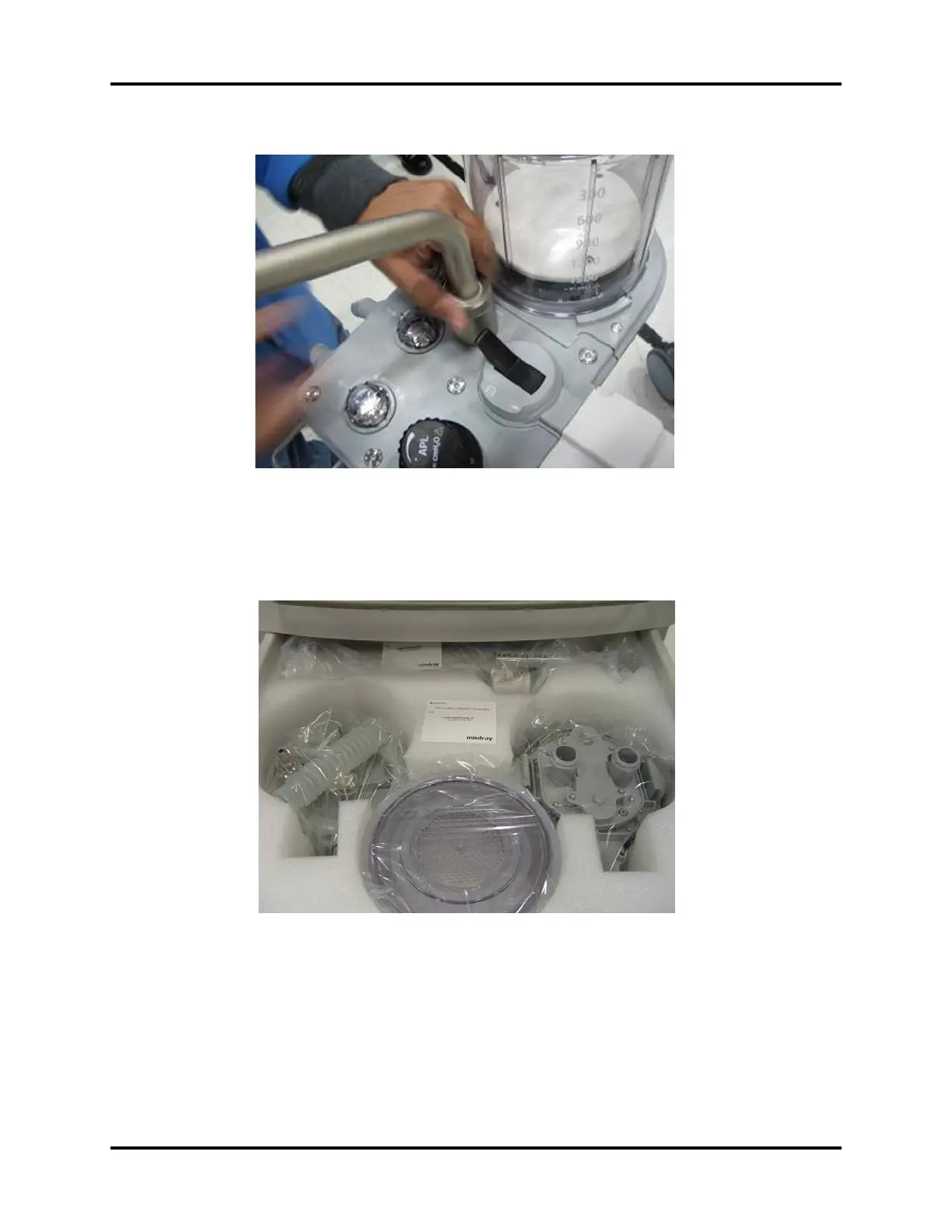

FIGURE 2-18
22. Open the middle and bottom drawers and carefully remove the Removable Absorber Assembly
(P/N: 115-007453-00), Waste Gas Scavenger Hose (P/N: 115-006557-00) and the Waste Gas
Scavenger Assembly (P/N: 115-006556-00).
FIGURE 2-19
23. Install the white Absorber hose on the Absorber Assembly. Then, install the Absorber Assembly
without the canister in place. Install the lower part first, line up the pins with the holes, and then
align the top part. Push the top part in (upward) until both the front and back latches click into
place.
