A5/A3™ Service Manual 046-001141-00 4 - 31
Calibration System Calibration

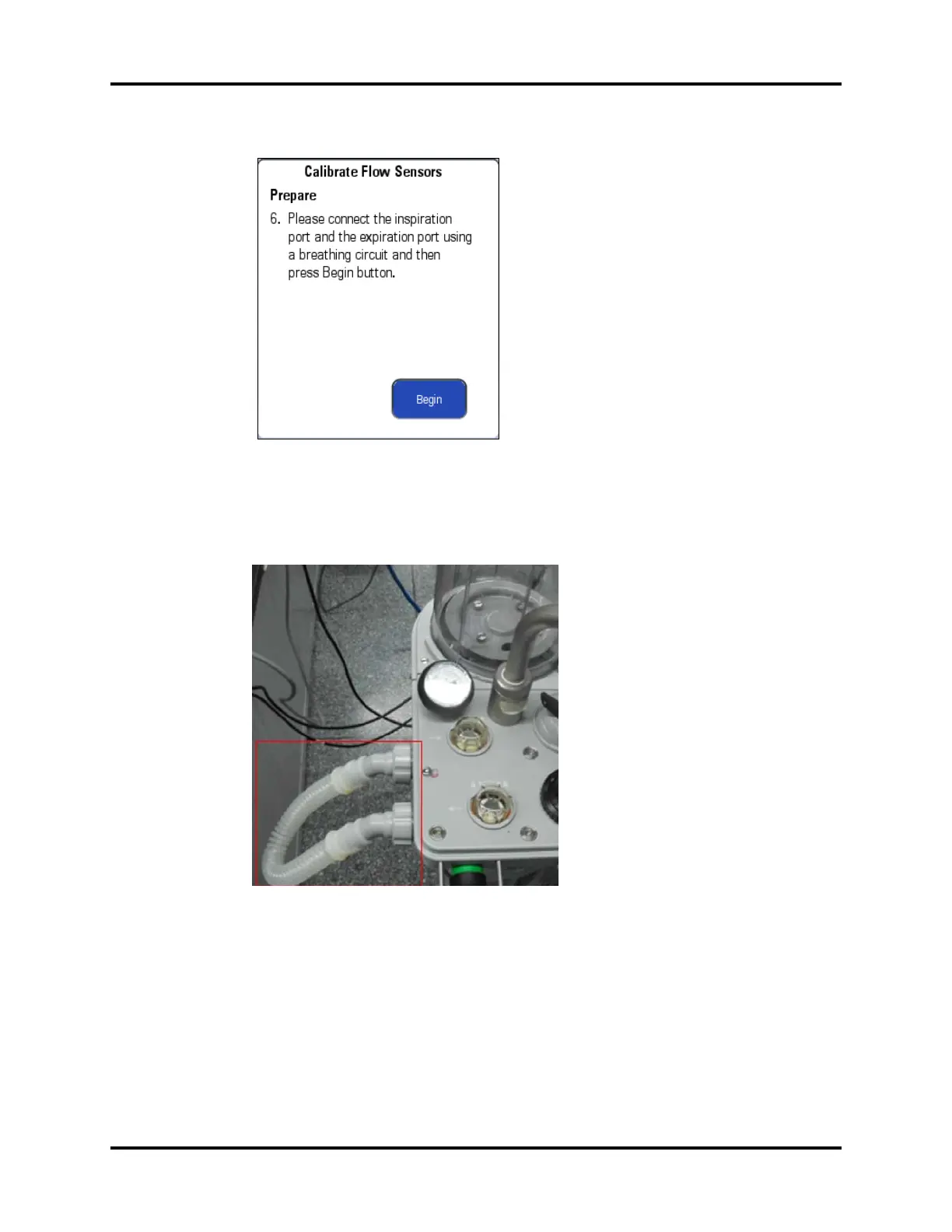

FIGURE 4-38
4. Connect the inspiration port and expiration port of the anesthesia machine following the on-
screen instruction as shown below.
FIGURE 4-39
5. Press the Begin button to open the menu shown below.
