A5/A3™ Service Manual 046-001141-00 4 - 47
Calibration System Calibration

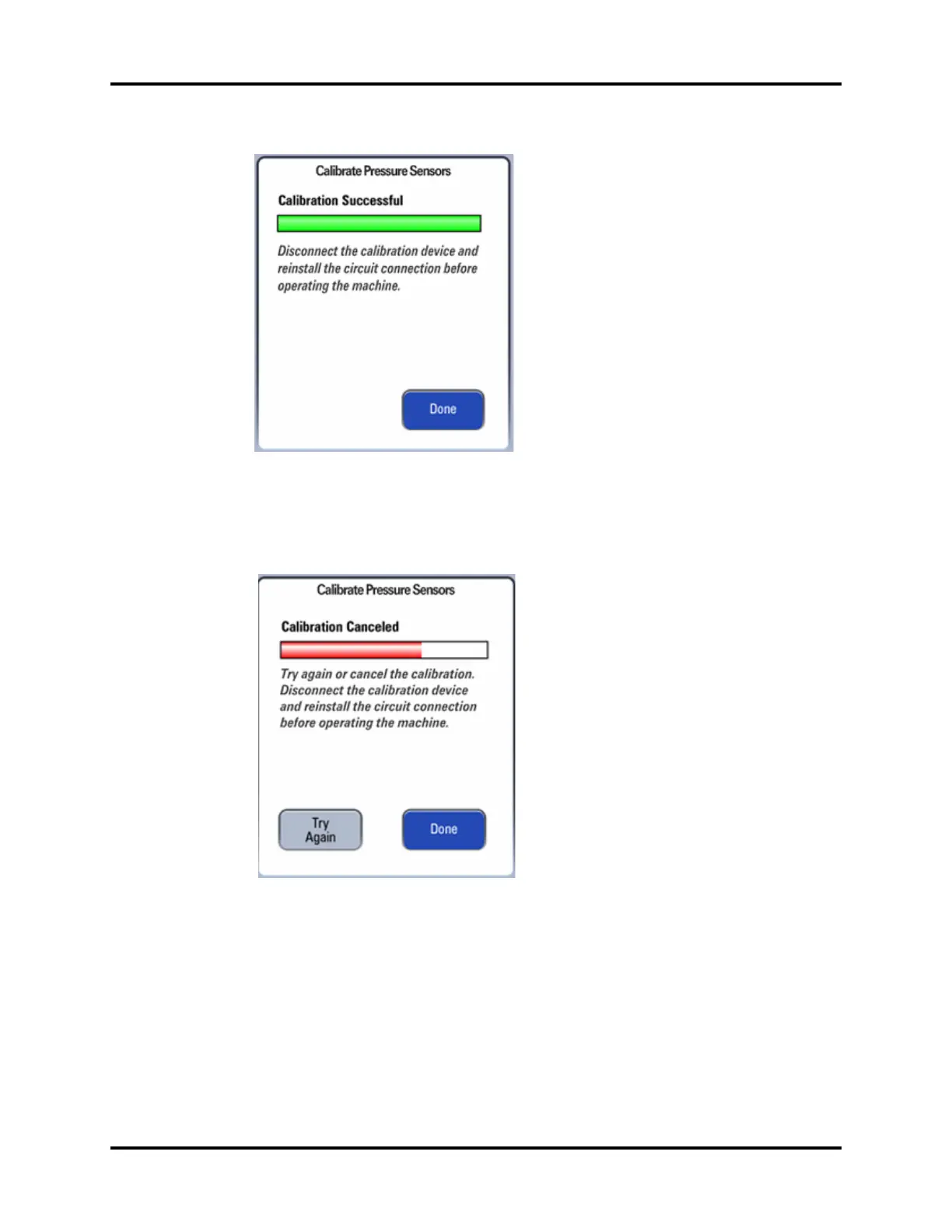

FIGURE 4-56
11. The screen shown below is displayed if the ongoing calibration is canceled. Select Try Again to
do the calibration again. Select Done to exit the calibration screen.
FIGURE 4-57
4.3.4.1.2 Manual Calibration
NOTE: Manual calibration is available in software version 01.03.00 and higher.
Follow these steps to calibrate pressure sensors and the PEEP valve.
1. Make sure that the anesthesia machine is in standby mode.
2. Select Setup-> Service-> Calibration-> Pressure Sensors to access the screen shown below.
