System Calibration Calibration
4 - 46 046-001141-00 A5/A3™ Service Manual

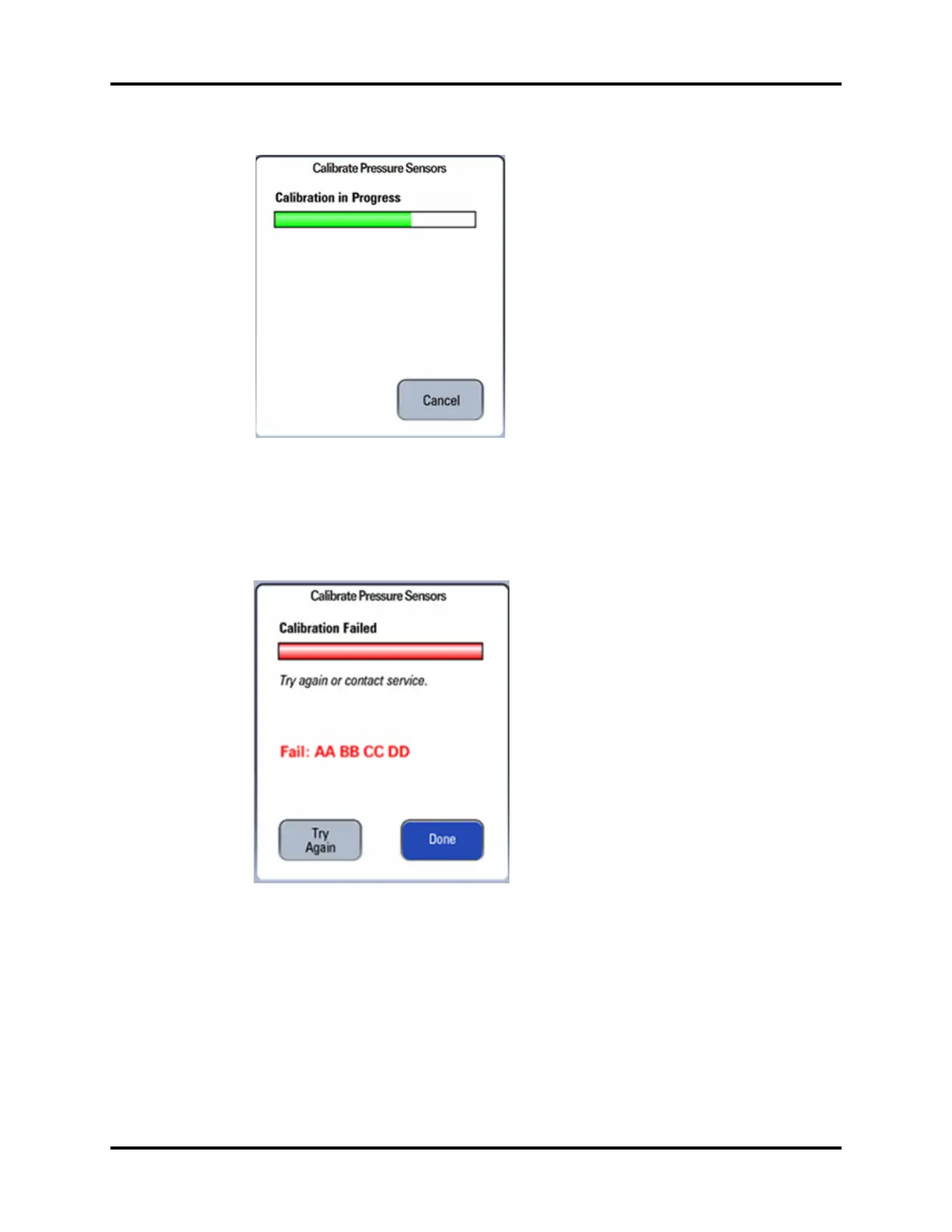

FIGURE 4-54
10. The screens shown below are displayed after the calibration is completed.
• The screen shown below is displayed if the pressure sensor calibration has failed. Select Try
Again to do the calibration again.Select Done to exit the calibration screen.
FIGURE 4-55
• The screen shown below is displayed after a successful pressure sensor calibration. Select
Done to exit the calibration screen.
